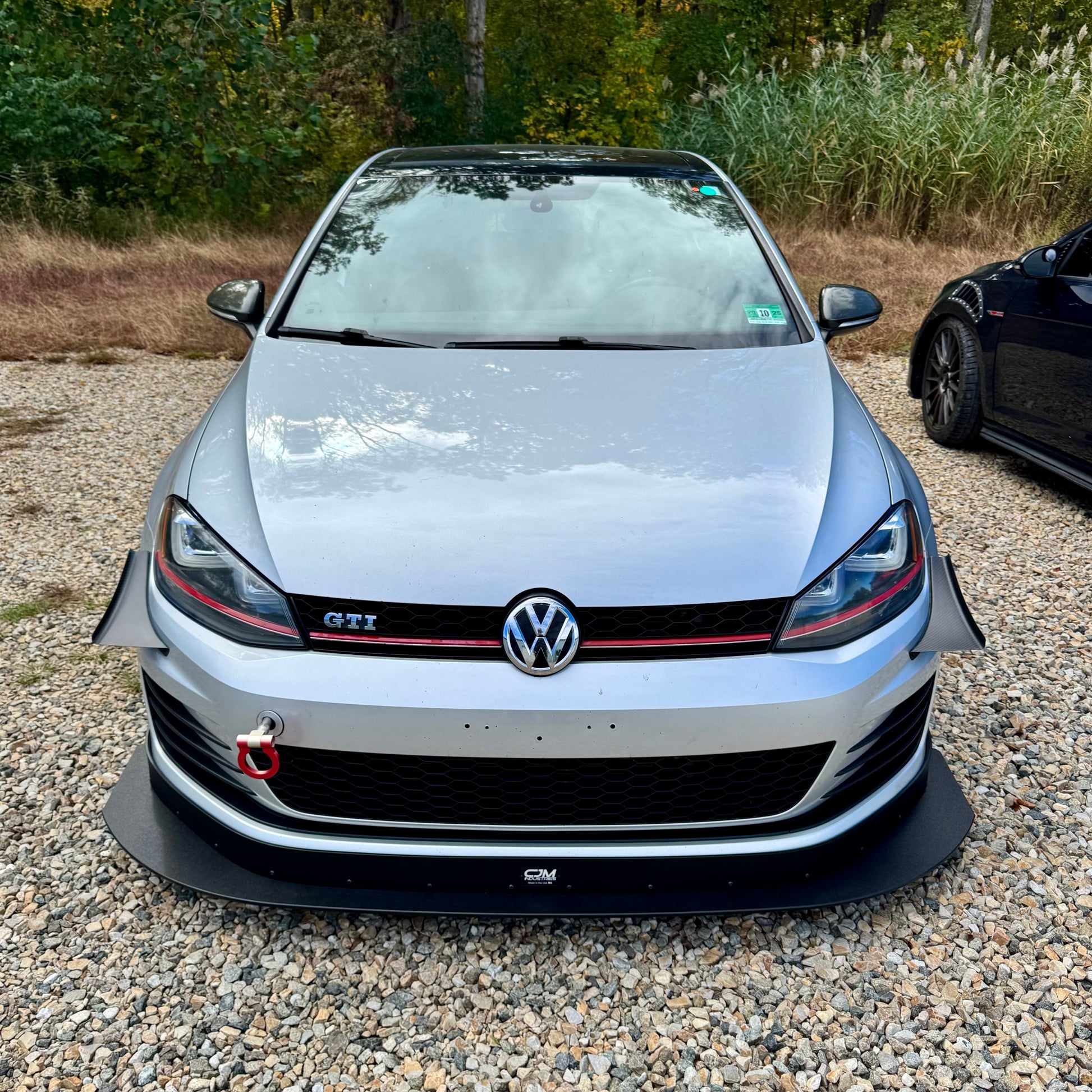

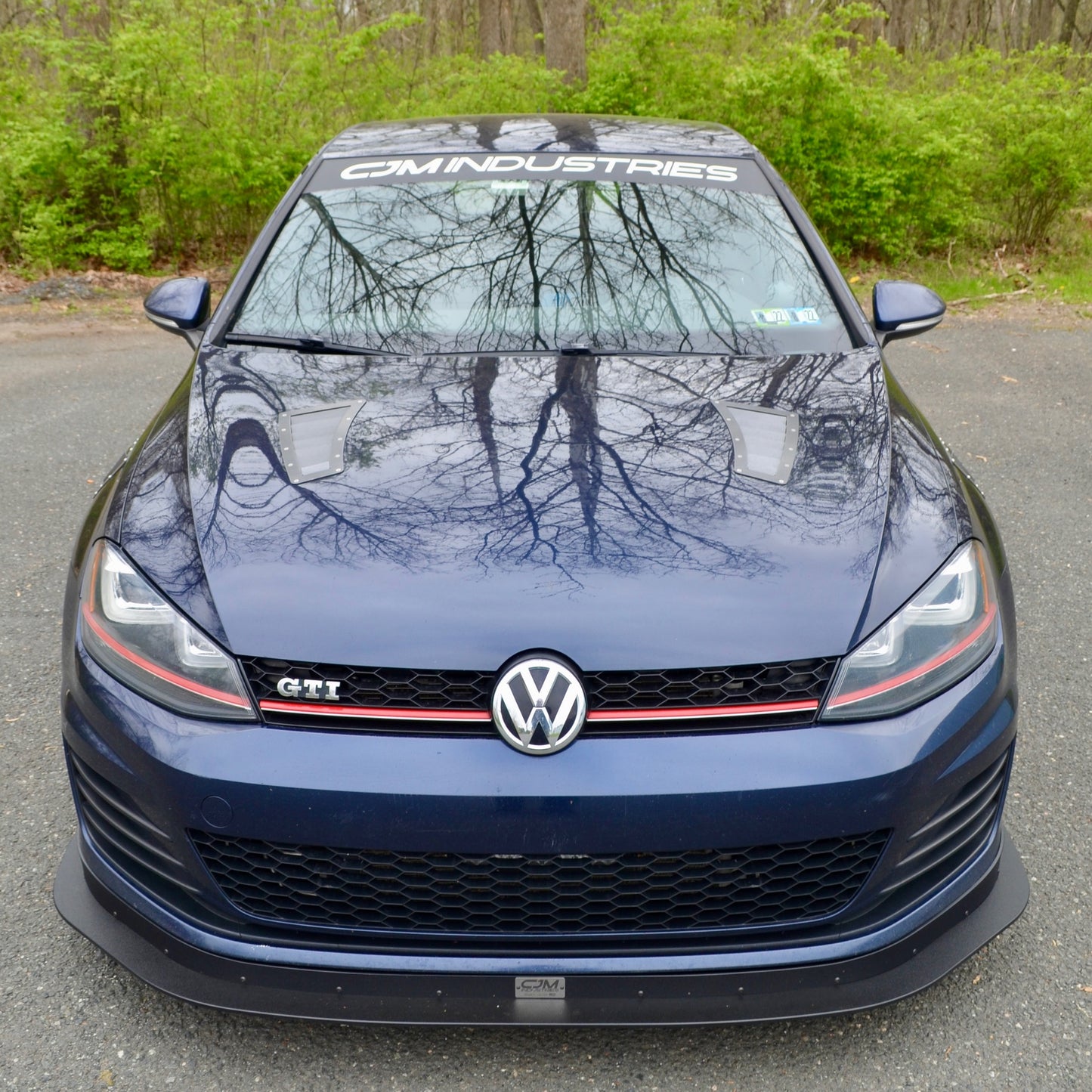

MK7 GTI Front Chassis Mounted Splitter - Gen2 - (2015-2017)
MK7 GTI Front Chassis Mounted Splitter - Gen2 - (2015-2017)
This product cannot be canceled or returned.
Couldn't load pickup availability
Our Gen 2 chassis mounted splitter kit improves on our popular Gen 1 kits. The revised brackets make the intial install process easier. It also reduces the time needed to bolt on, or remove the splitter blade once the kit is mounted. Ideal for easy trailer loading, or daily duty. With 4-8 bolts (depending on the blade & accessories), the splitter blade can be removed from the car without removing the bumper.
This is NOT a quick release system.
Initially designed in airshaper CFD, and refined based with on-track feedback from our early adopters with Gen 1 kits, our results for tested kits are shown in the table images (bracket kits and street blades were not tested).
- Please review all details in the drop downs below for fitment and install requirements! All sales are final.
- Built in USA. 1 Year manufacturer warranty on failed parts. Wear and tear from rubbing is not covered.
Install & Fitment Details
Install & Fitment Details
- Install requires drilling holes in the impact bar.
- Install requires cutting slots in the lower tray of the bumper (no paint matched areas are trimmed).
- Fits 2.0T MQB & some PQ35 vehicles.
- The brackets are compatible with factory position upgraded intercoolers.
- The brackets are not compatible with any front mount intercooler.
Included Parts
Included Parts

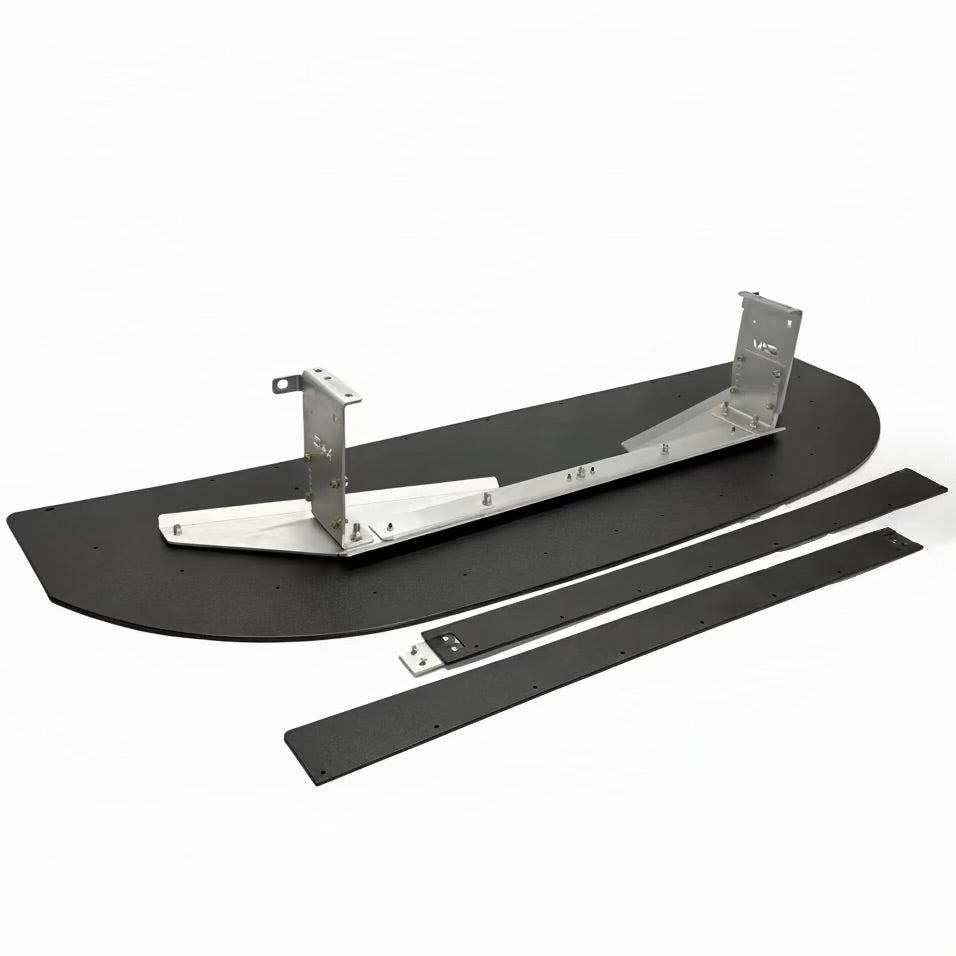

- Bolt-on style chassis brackets (drilling required).
- Upper, Lower, Center bracket.
- Mounting Hardware:
- For mounting the brackets to the car
- For mounting the a blade to brackets (for countersunk holes).
- 8V A3/S3 only - Rivnuts for aluminum impact bars - (setting tool not included)
Add-on Options
Add-on Options
Options for all kits:
- Powder coating on brackets
- Drill bits - 11mm step bit & 4mm pilot bit
- 9mm thick, black UV resistant textured poly splitter blade with a radiused edge
Options for Mixed use and track blades:
- Air Dam
- Endplates
- Tire Spats
- Subframe panel
Upgrades & Replacement Parts
Upgrades & Replacement Parts
- We utilize the same brackets for all blade types. You can unbolt and swap on a different blade for street, autocross, or track use.
- If you purchased a Gen 1 kit from us previously, you can upgrade the bracket kit and/or blade separately. Your Gen 1 upper, and lower can be reused with a Gen 2 center bracket.
- Lower Center Bracket
- Replacement Blade
Other general info:
Install Info
Install Info
Install sheets can be found on CJMinstall.com. We are in the process of digitizing all sheets. If you can't find the copy you need, please email us! support@cjmind.com
Order FAQ
Order FAQ
-
When will my order ship?
- Refer to the cart estimates for the most accurate ship times. Add your products, provide shipping info and review the options we have for the specific parts. Some items are made to order, others are stocked so the order will be split based on availability.
- Some listings also show a lead time in the description if the part is made to order.
- Orders placed on Friday will ship on Monday or Tuesday. Mondays are our busiest shipping days, so weekend orders may not ship until Tuesday - IF the product is in stock.
- DHL Orders placed after 10am EST on Friday will ship on Monday.
- Tracking will be emailed as soon as we create the label.
- If you want to check availability and get an estimated ship date, contact us before ordering: support@cjmind.com.
- Do your products come with a warranty?
- Yes! We offer a manufacturer warranty on all of our products, the time period ranges by product line, so feel free to contact us for replacement parts. Please be sure to include which pieces you need.
- Do you ship international? What are the fees?
- We do ship direct to some countries outside the US.
- All international shipments are sent DDU and with signature required. You will be responsible for all duties and customs fees and arranging for delivery.
- The customer is responsible for all import duties and customs fees. They are not built into the product cost.
- What is your return & order cancellation policy?
- Please check it out here: Returns & cancelled orders
Still have a question that's not covered here?
Help me pick!
Bracket Kit
A set of brackets and mounting hardware to build your own blade. DIY to save some cost, or build one for the class you compete in. We can also make custom sized blades if you have dimensions.
1/2" or 3/4" Plywood is a great cheap option because it is rigid and relatively lightweight. Paint it with a stain/sealer and top coat with paint, or use roll on bed-liner.

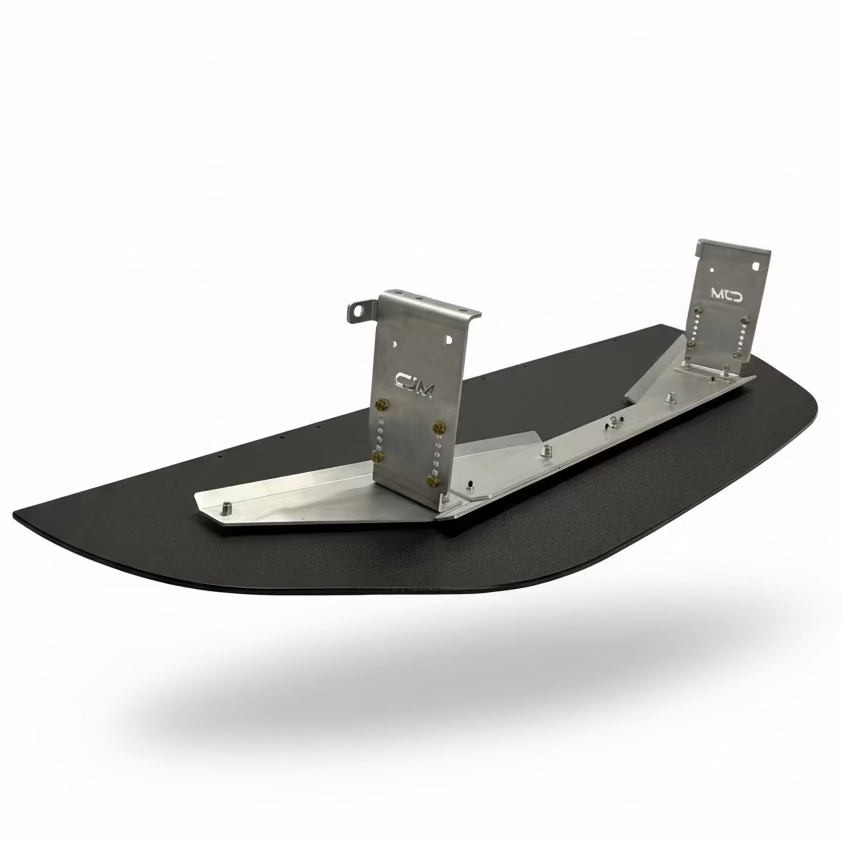

Street Blade
Think of this as a chassis mounted lip. Extra protection against road debris and snow. Made of 9mm thick poly it is durable, easy to clean and has a light texture that is close to some factory trim.

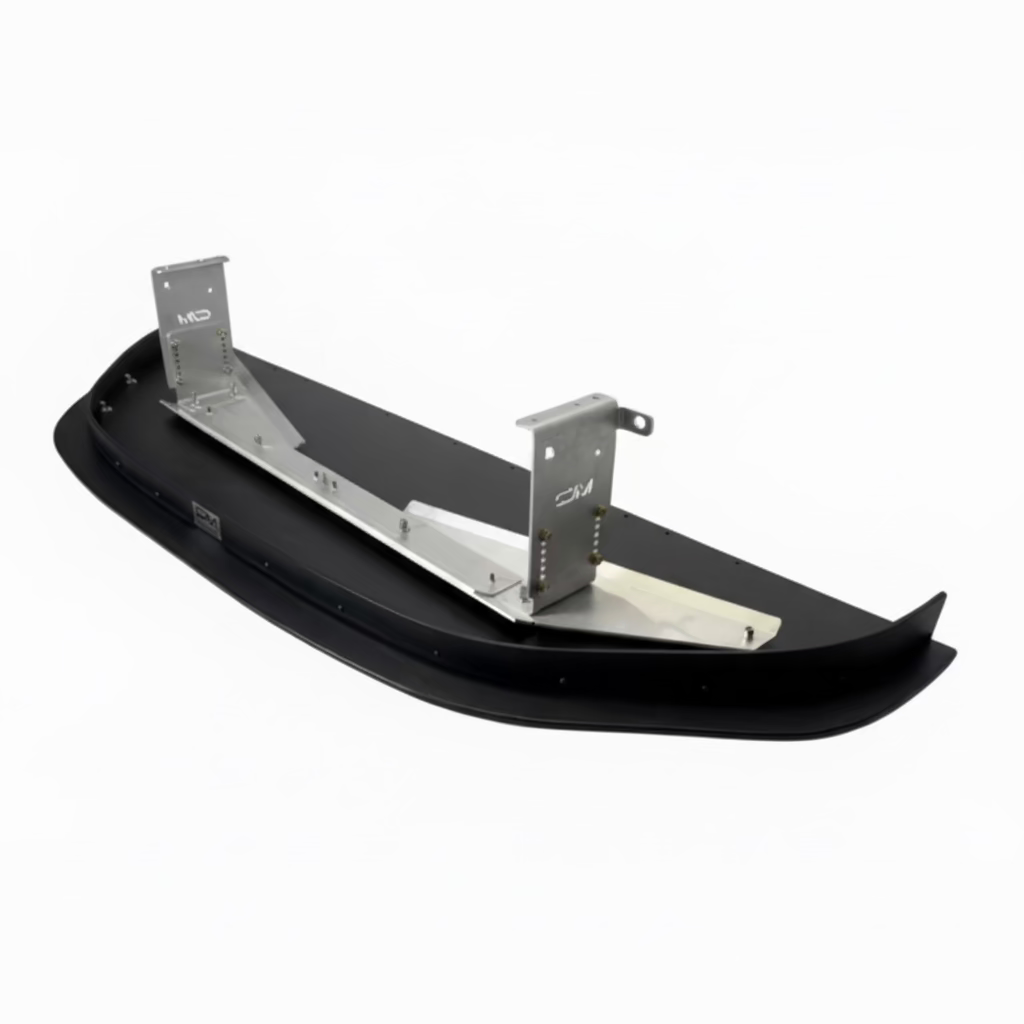

Mixed Use Blade

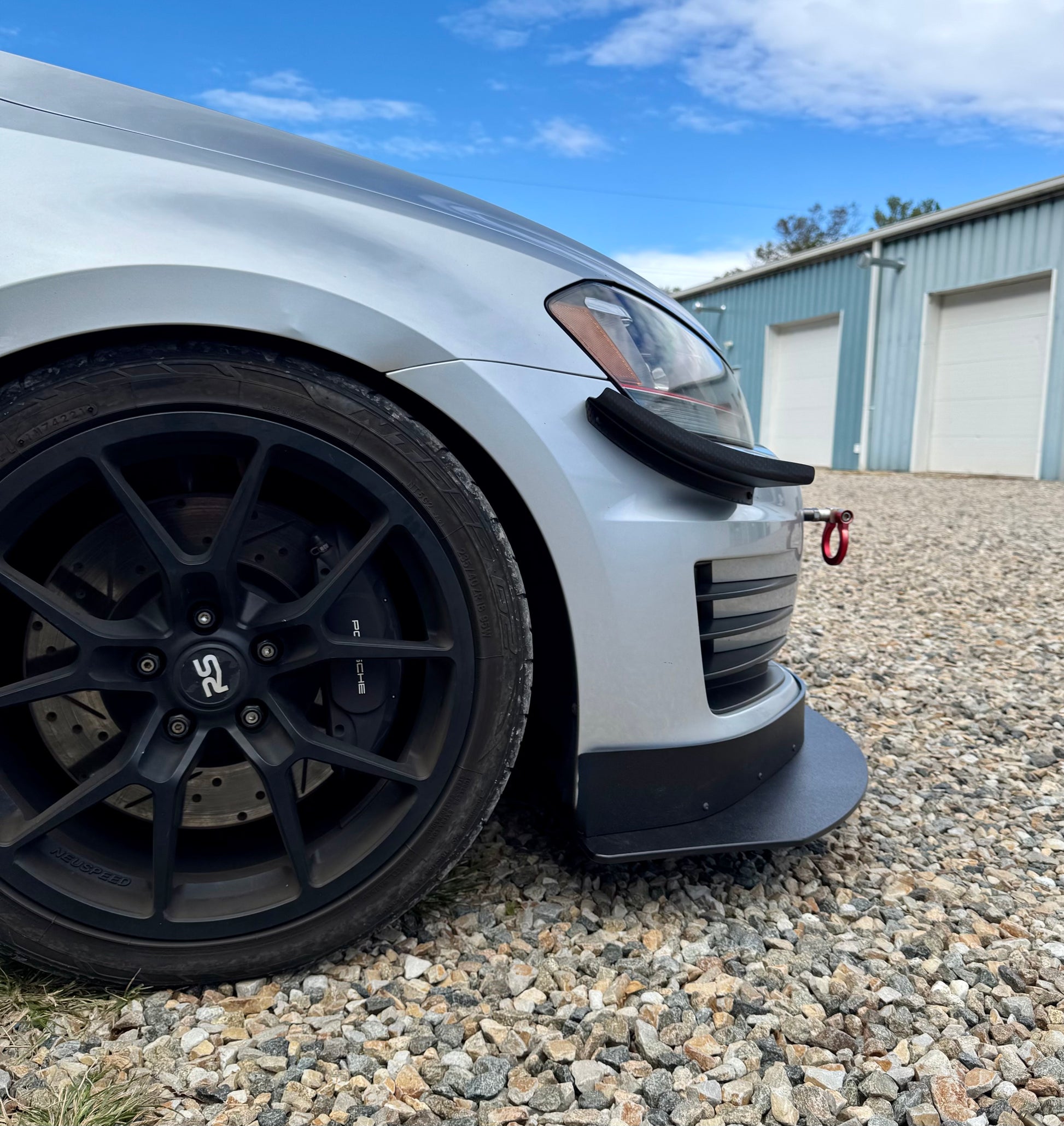

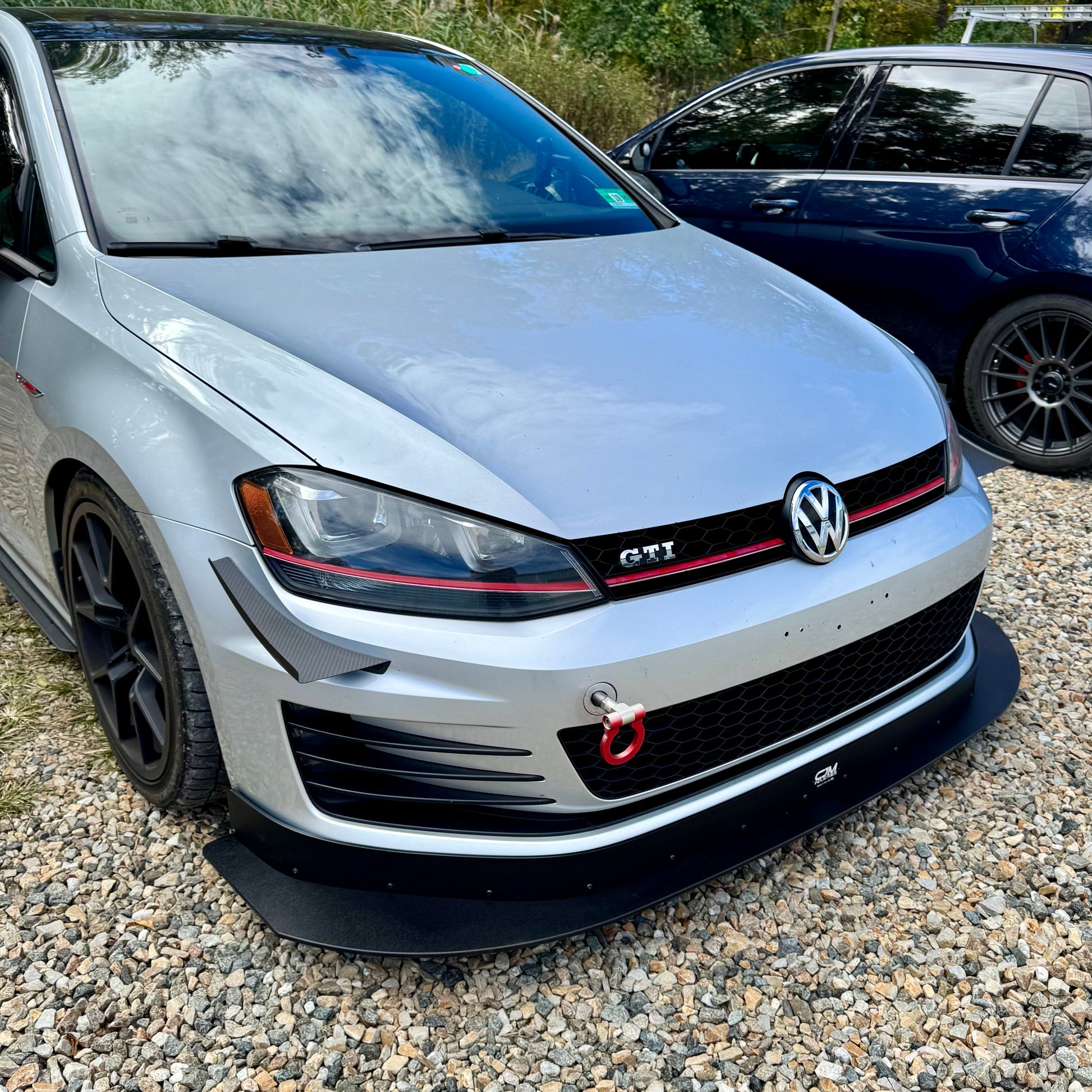

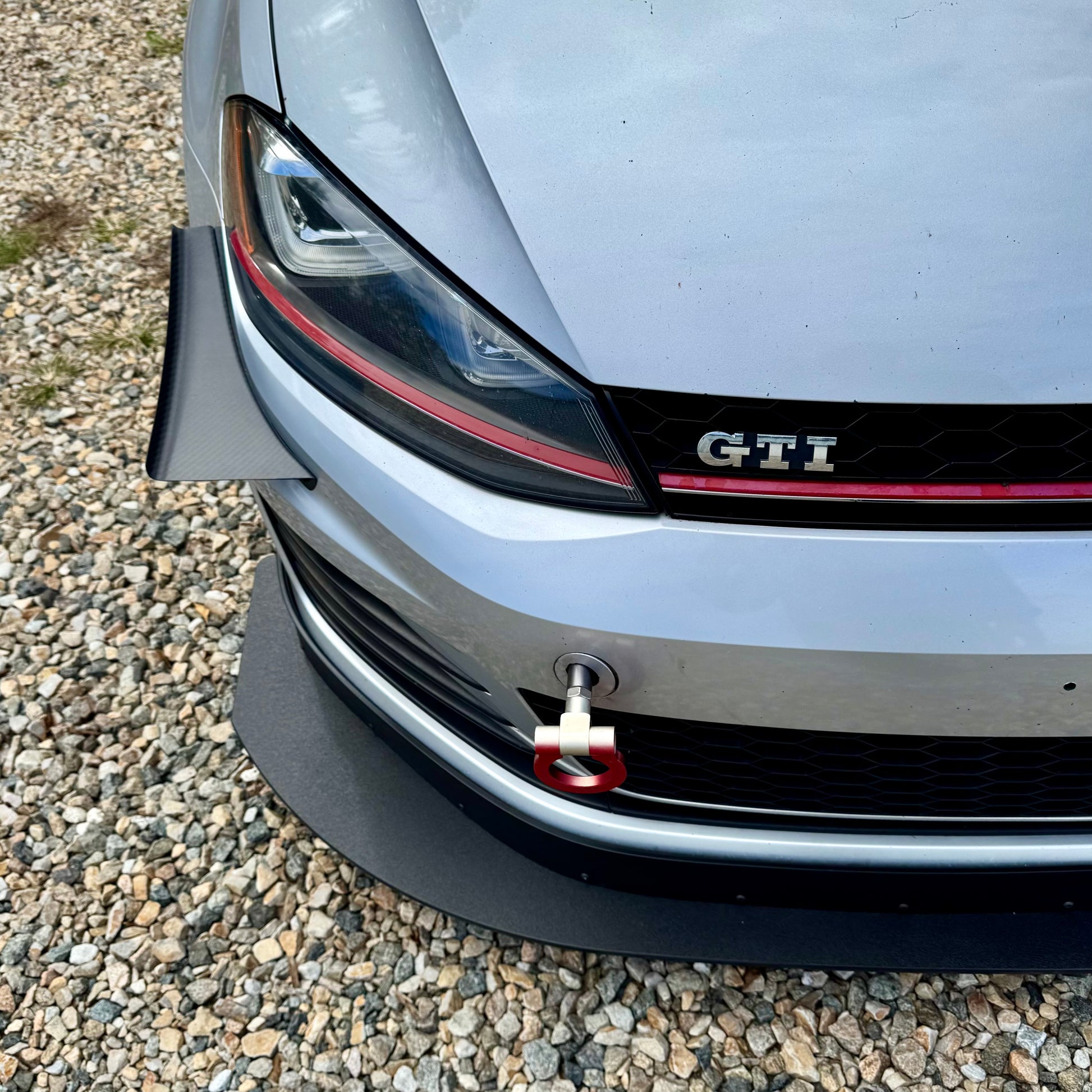

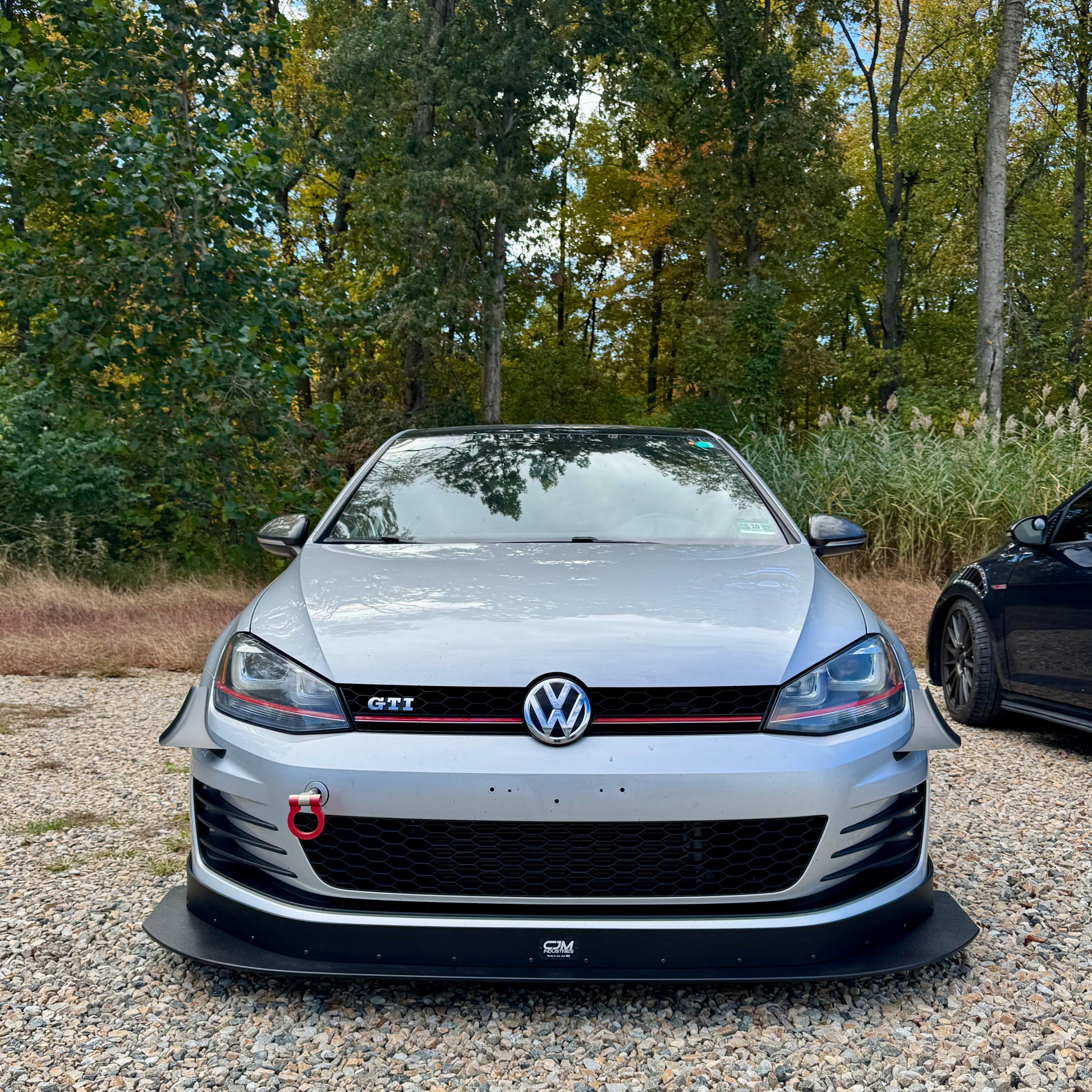

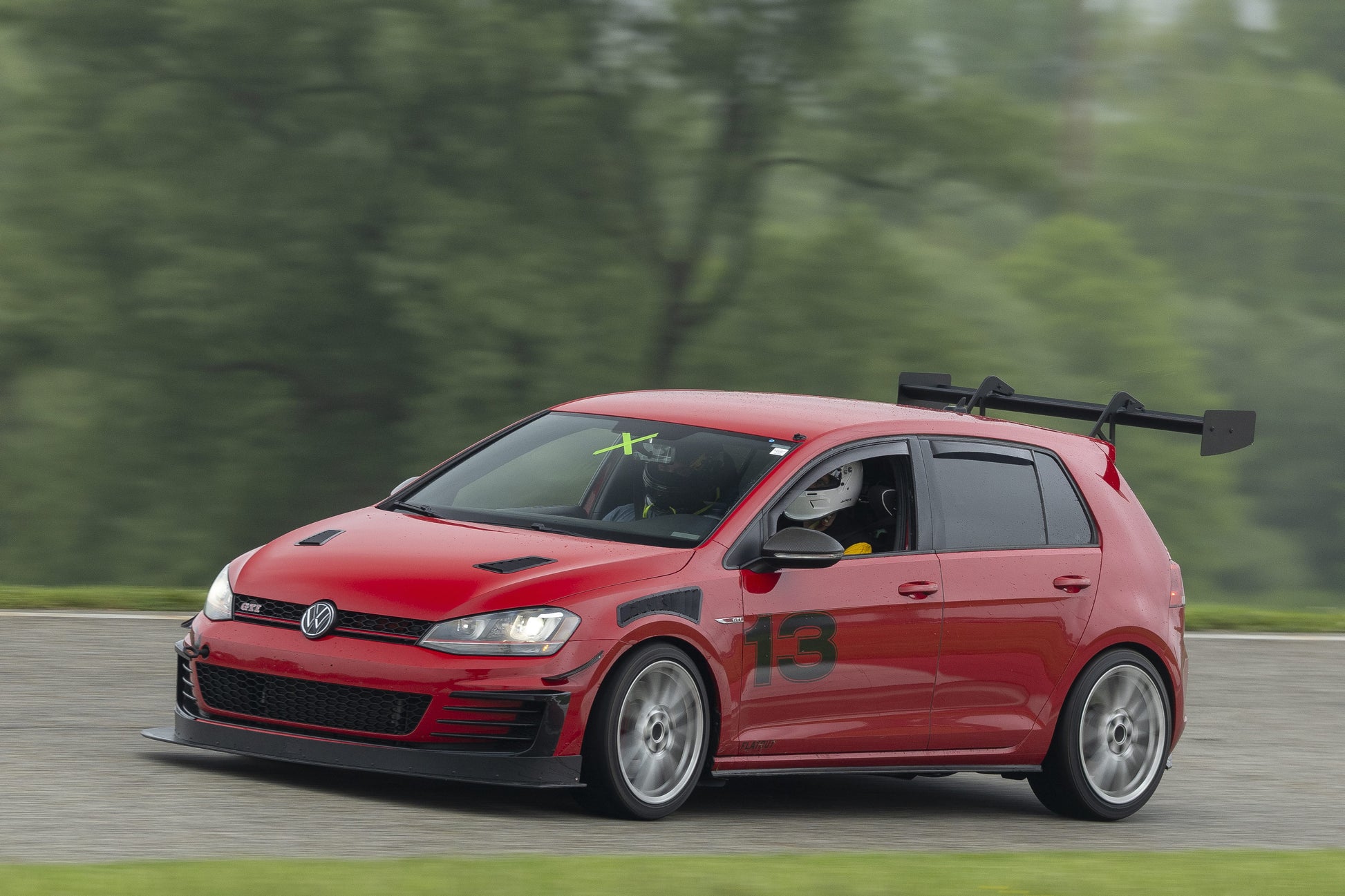

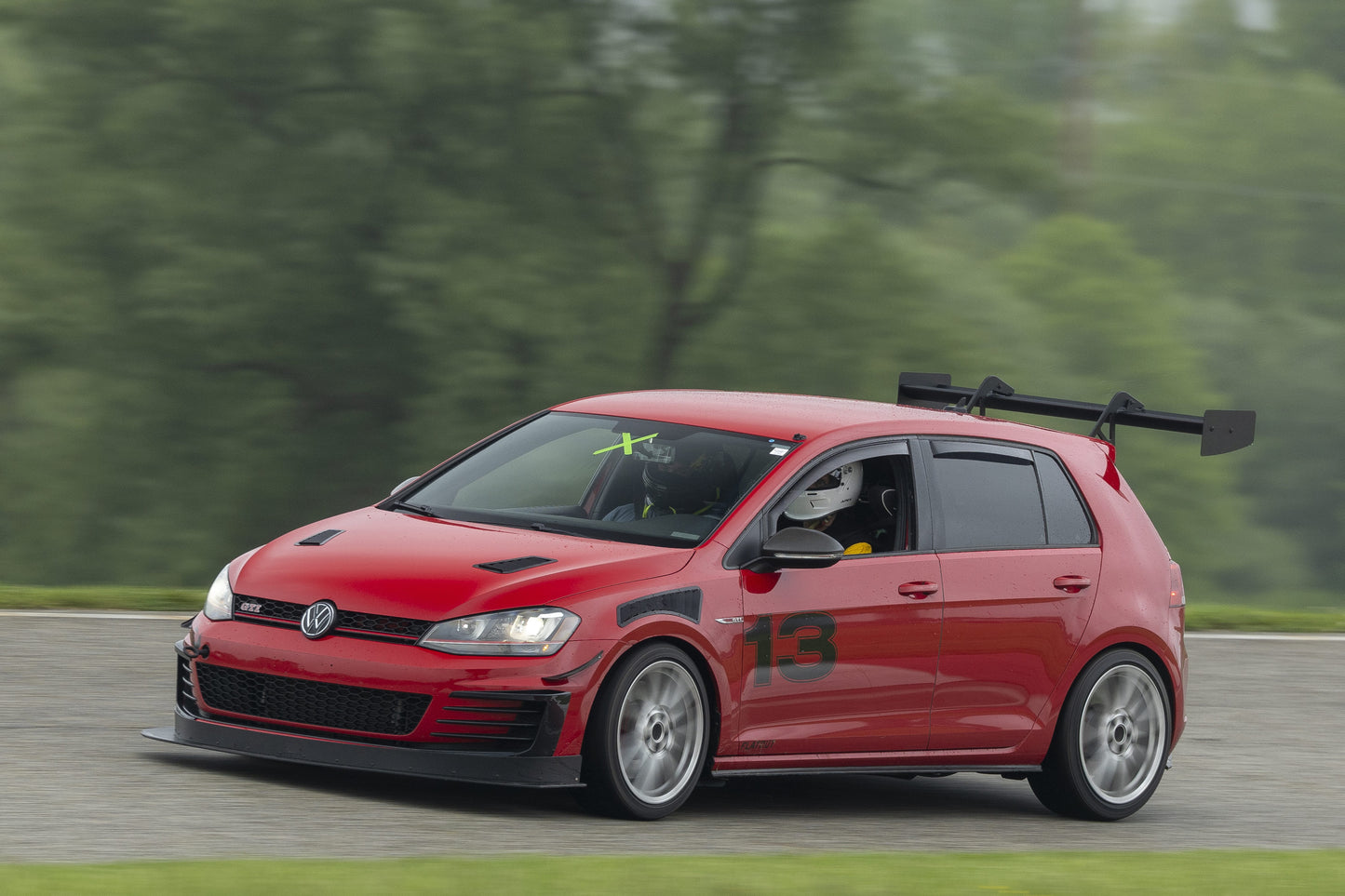

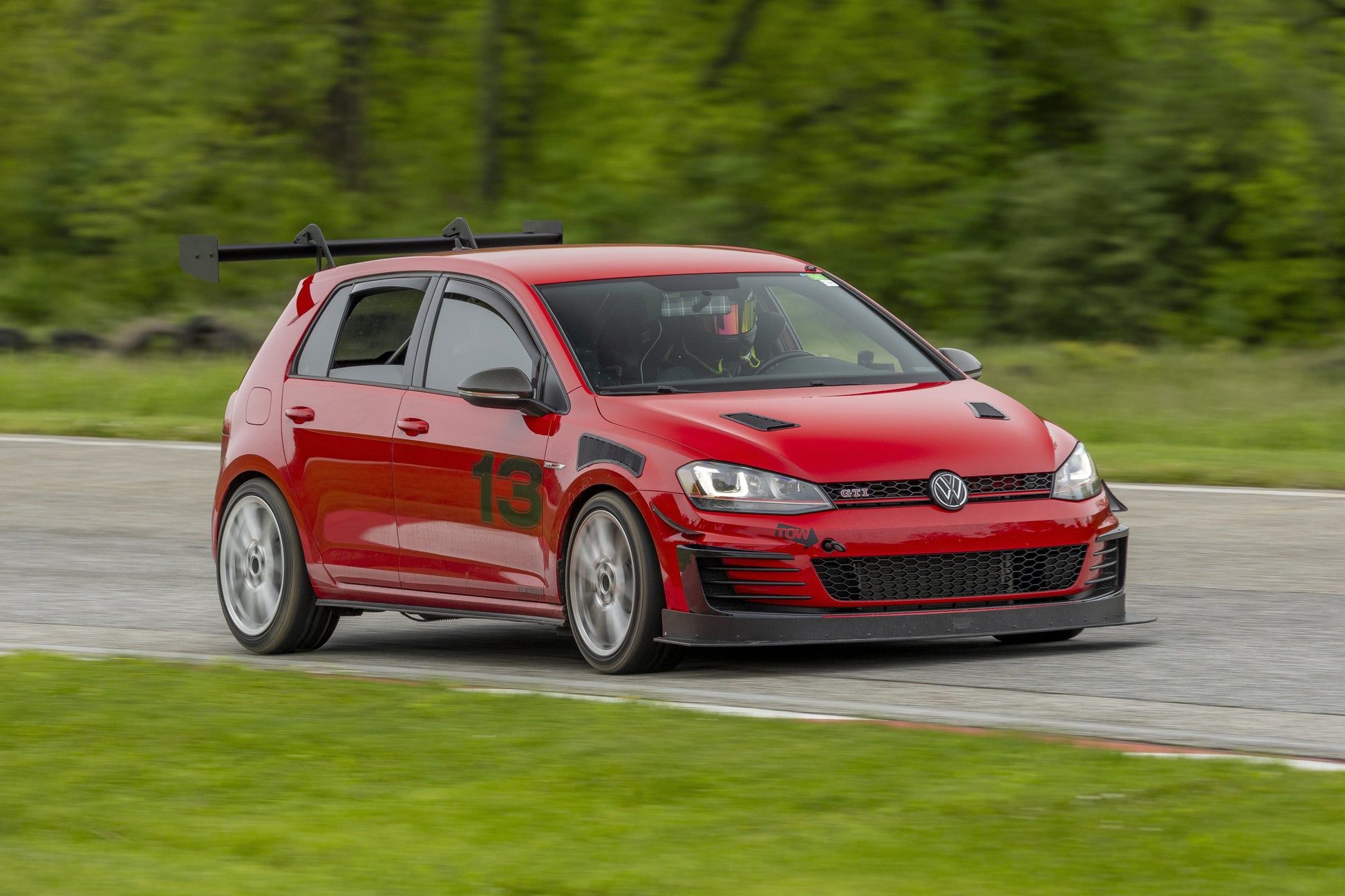

These are good for autocross and similar events. This blade is larger than the street option, and comes with predrilled holes to mount the included air dam. These are our most popular kit. They give the car a unique track inspired look, provide some downforce and are still small enough to be street drivable.
Track Blade (coming March 2026)
These are meant for on track use. With the tire spats, endplates, and subframe panel this creates enough front end downforce that it is strongly recommended to run a functional wing on the back of the car to balance it. You can further tune your setup balance with canards and a hood vent.
**These are not available for all models yet. If you are local to PA and would like a kit, contact us about building one for you on-site.

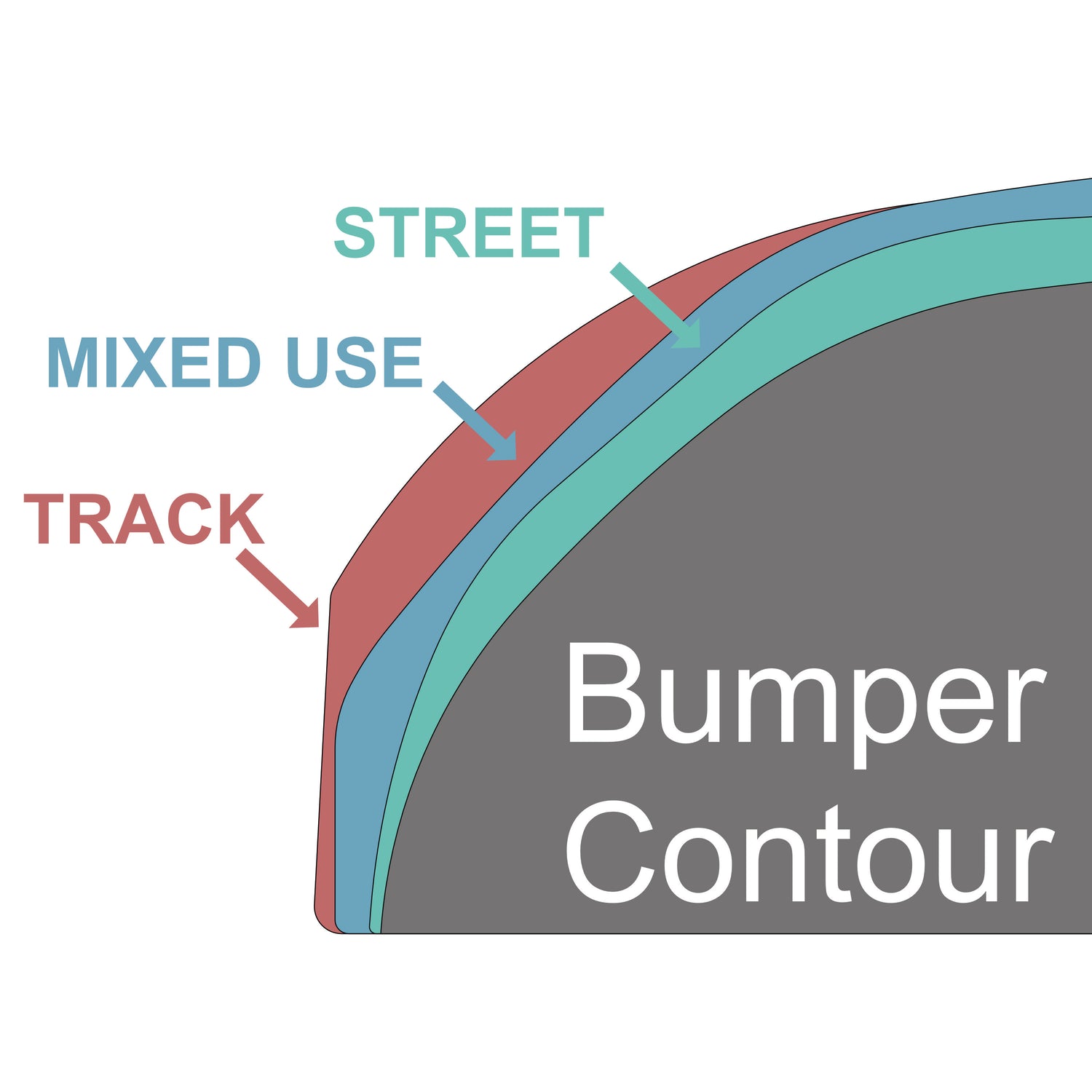

Blade Comparison
Each blade has a sightly different shape to match its intended use case.
- Our street blades protrude slightly more than our bumper mounted lips.
- Mixed-use have a roughly 60mm lip protrusion
- Track blades widen at the edges to allow for endplates, tire spats, etc.
Have more questions, or rule sets to meet?
Contact us to discuss your project. We can verify if our off the shelf options will meet your rule book. And if not, we can build custom blades and bolt on's. Starting at $499.
OFF ROAD USE DISCLAIMER
Off road use only, not intended to be used on public roads. This product is not DOT approved. This product may alter the handling of the vehicle. The buyer is responsible for all modifications made to your car. CJM Industries llc assumes no responsibility or liability as a result from altering your car with our products. This product may not comply with Federal, State, Province, and/or Local laws, ordinances, and regulations. Buyer takes all responsibility to conform to all applicable laws and regulations for road use, especially pertaining to safety.
