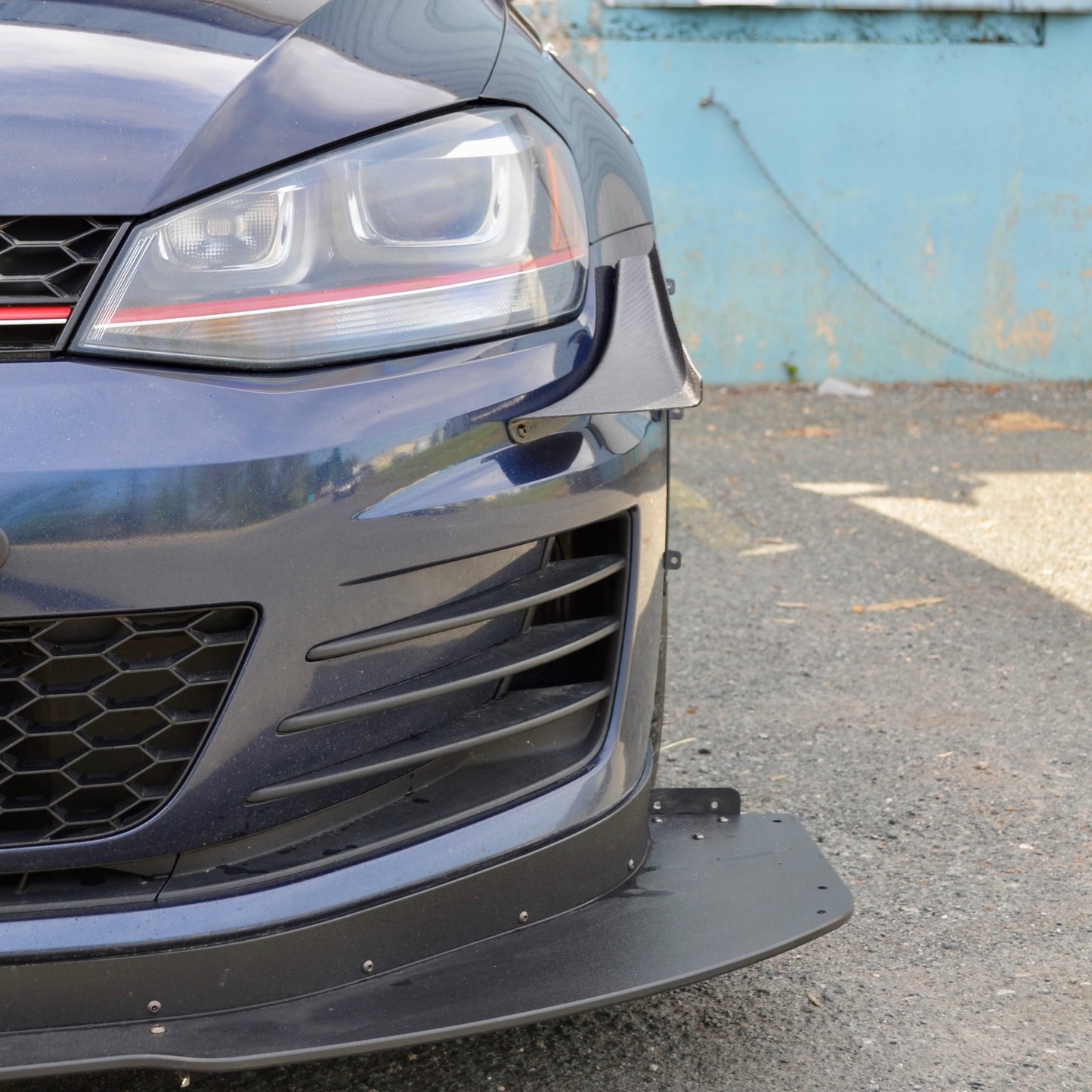

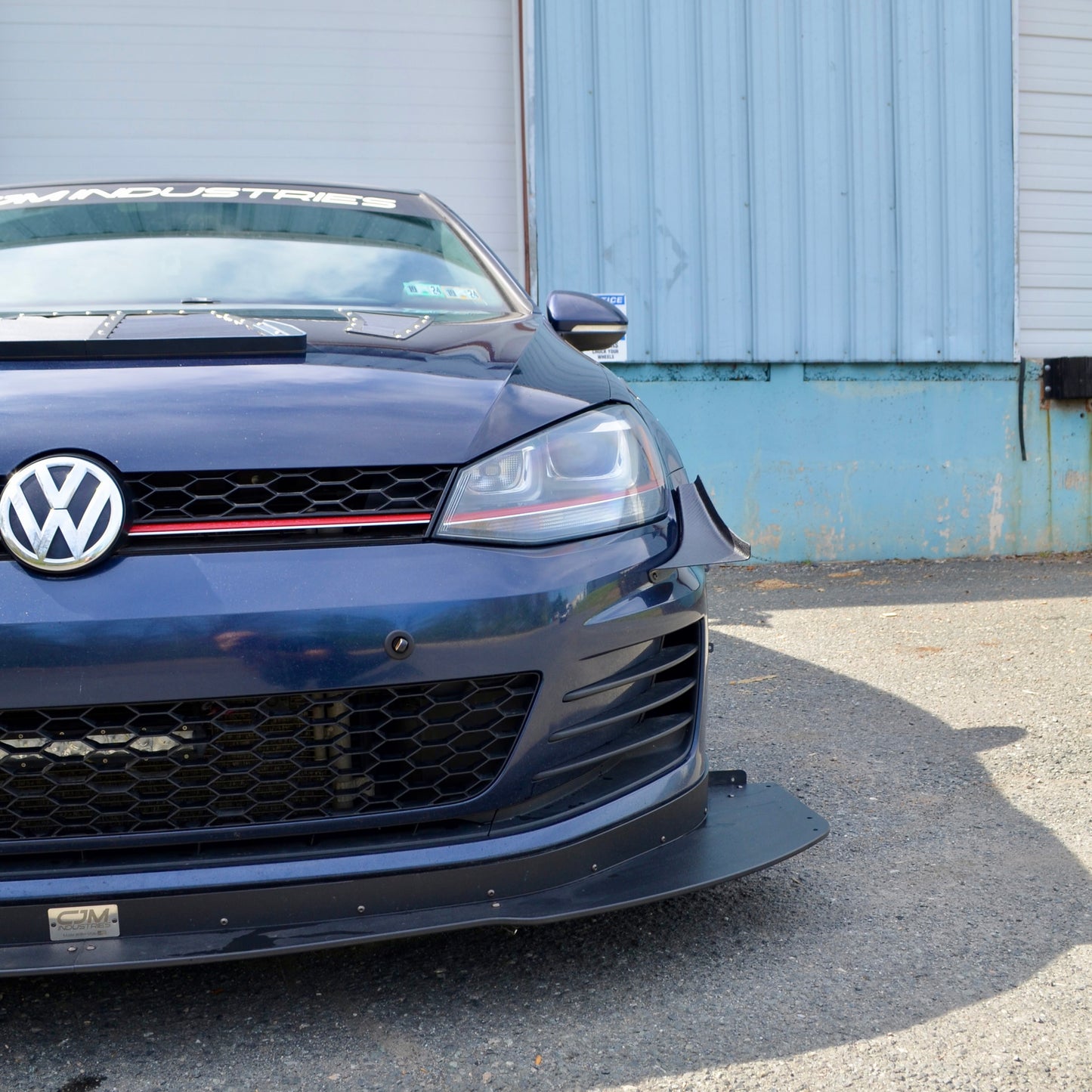

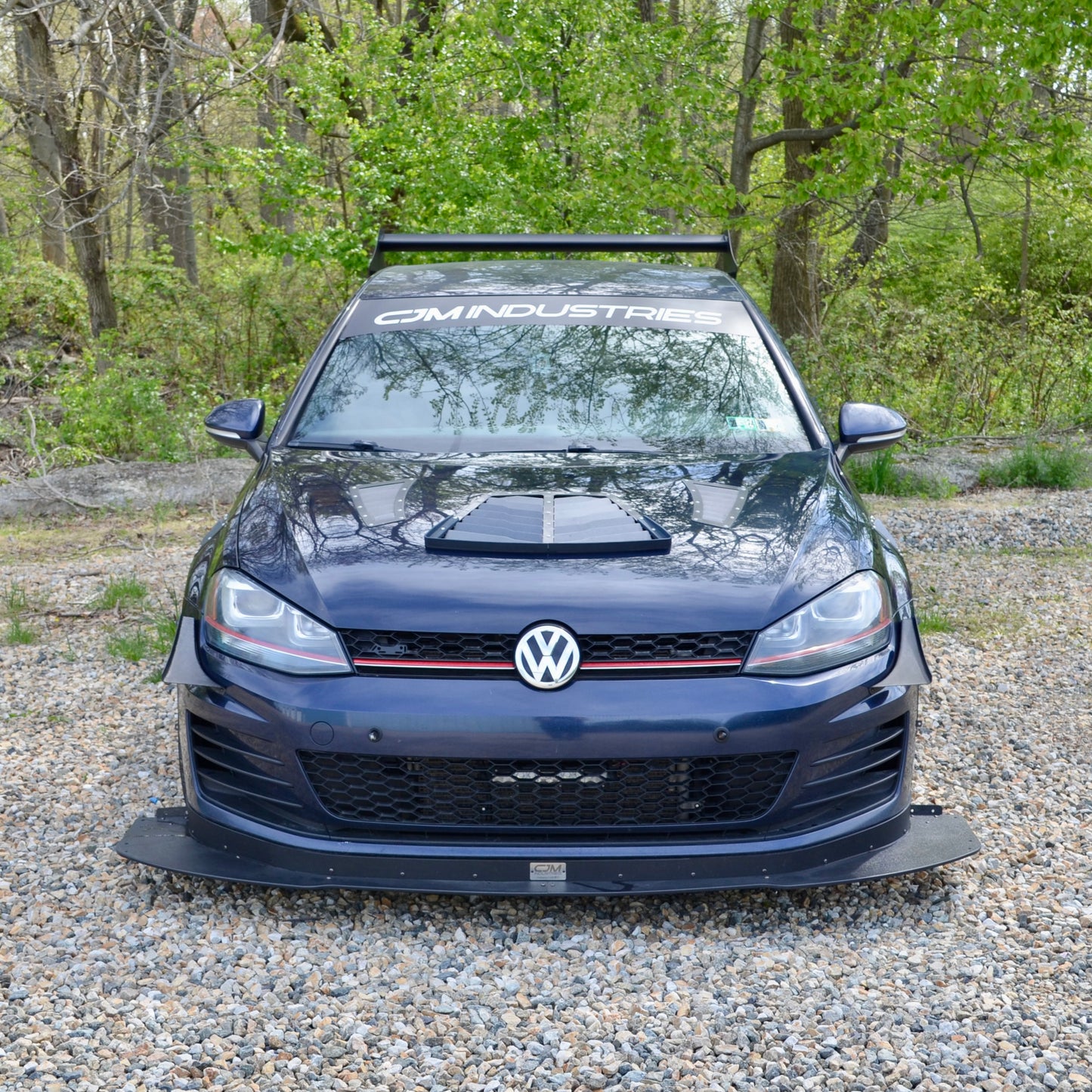

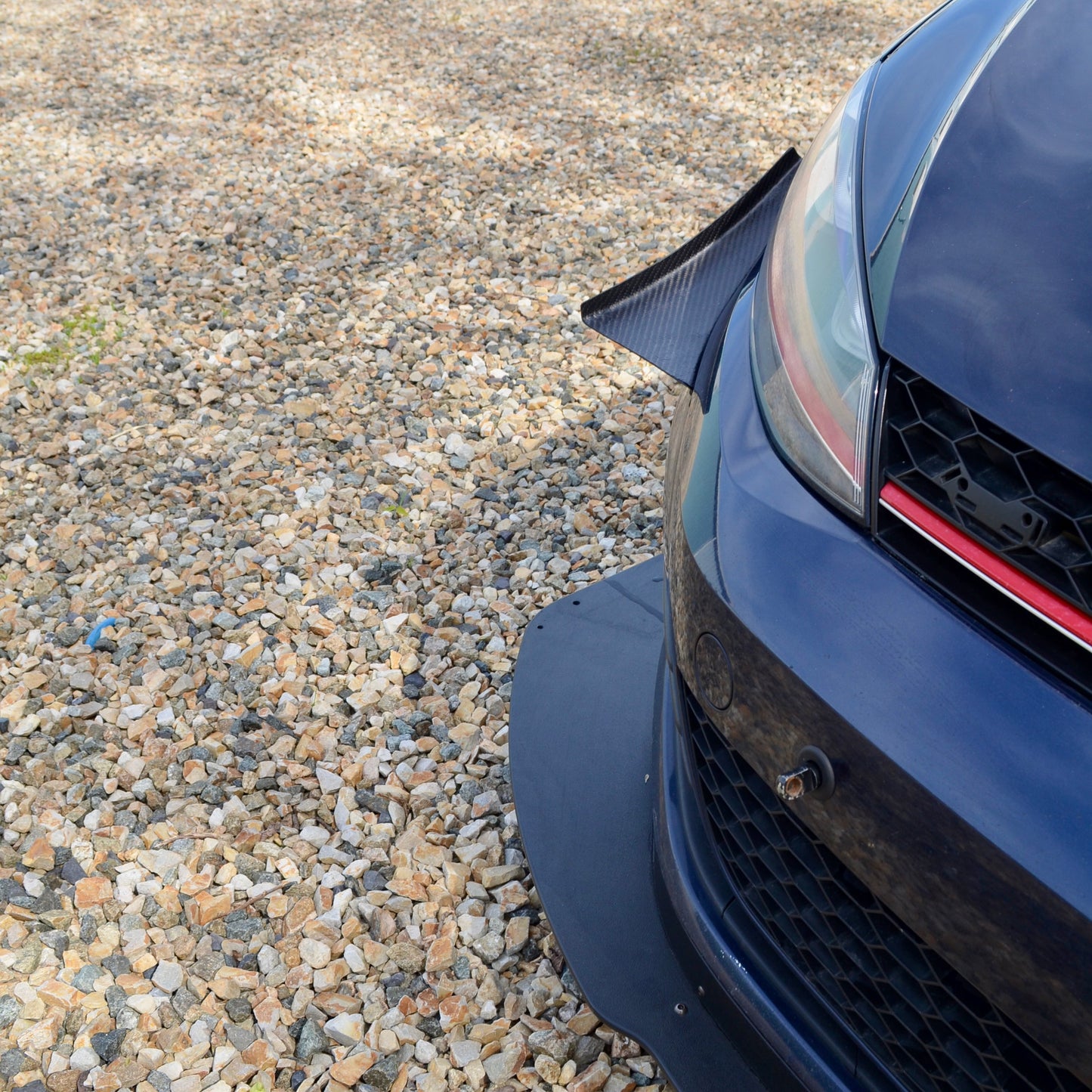

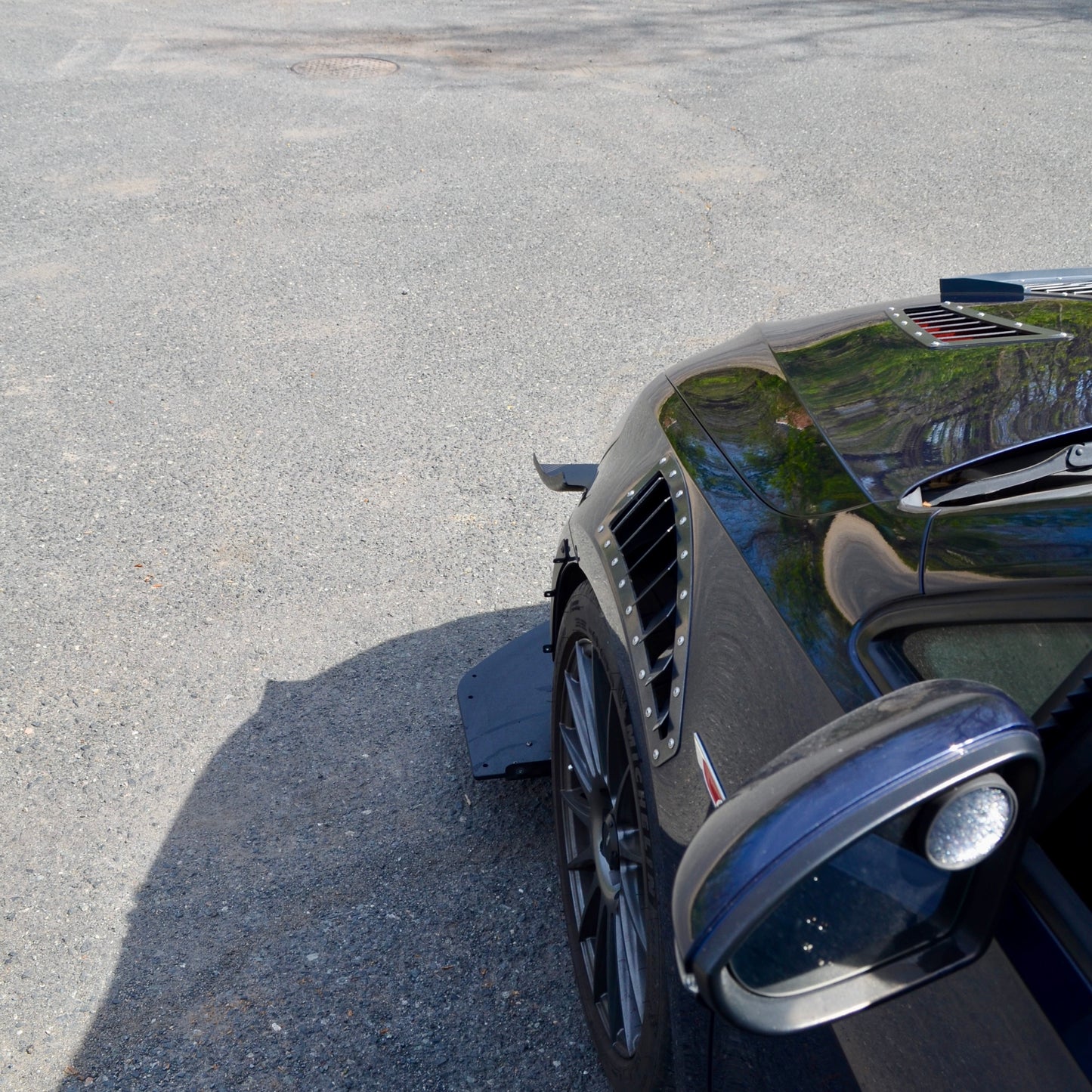

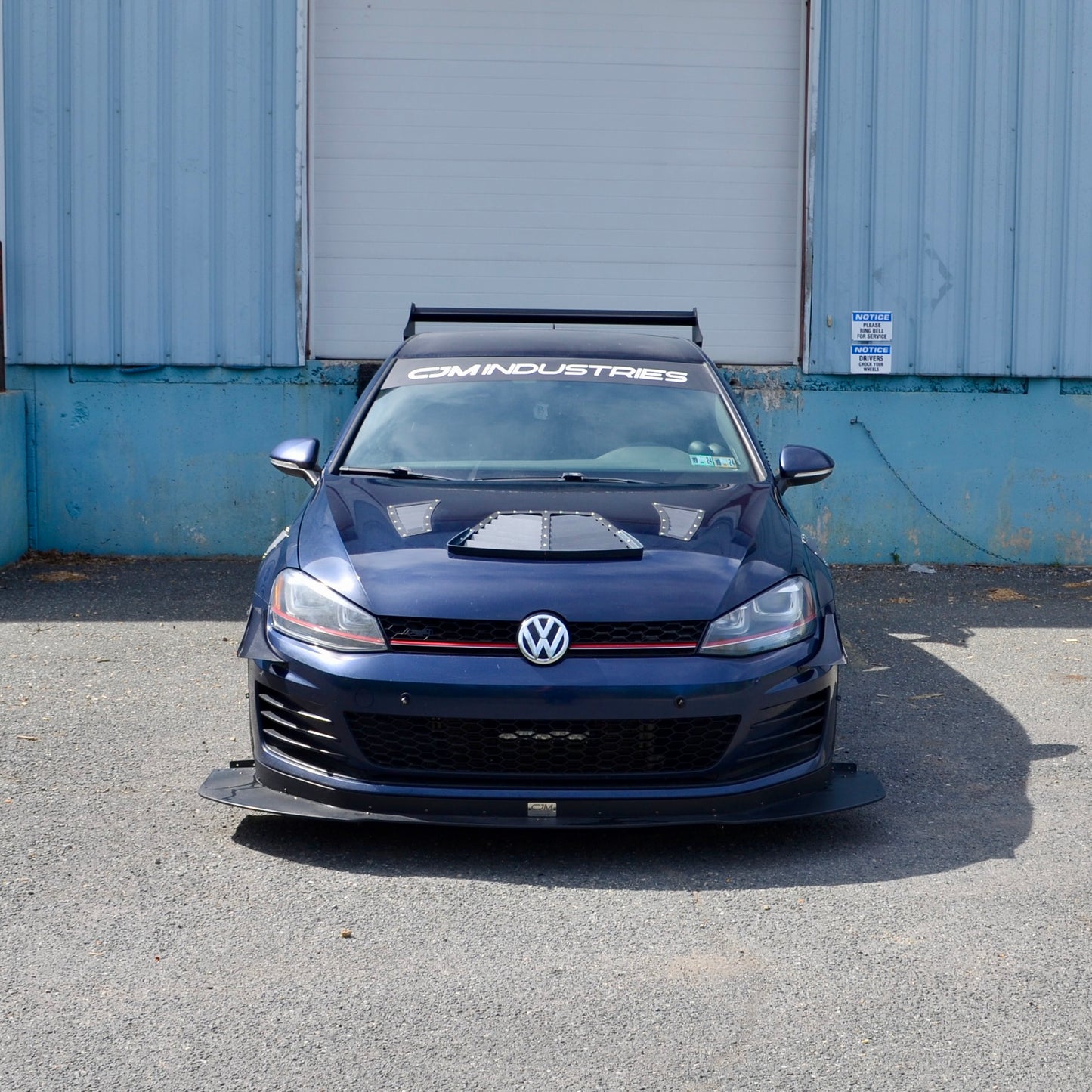

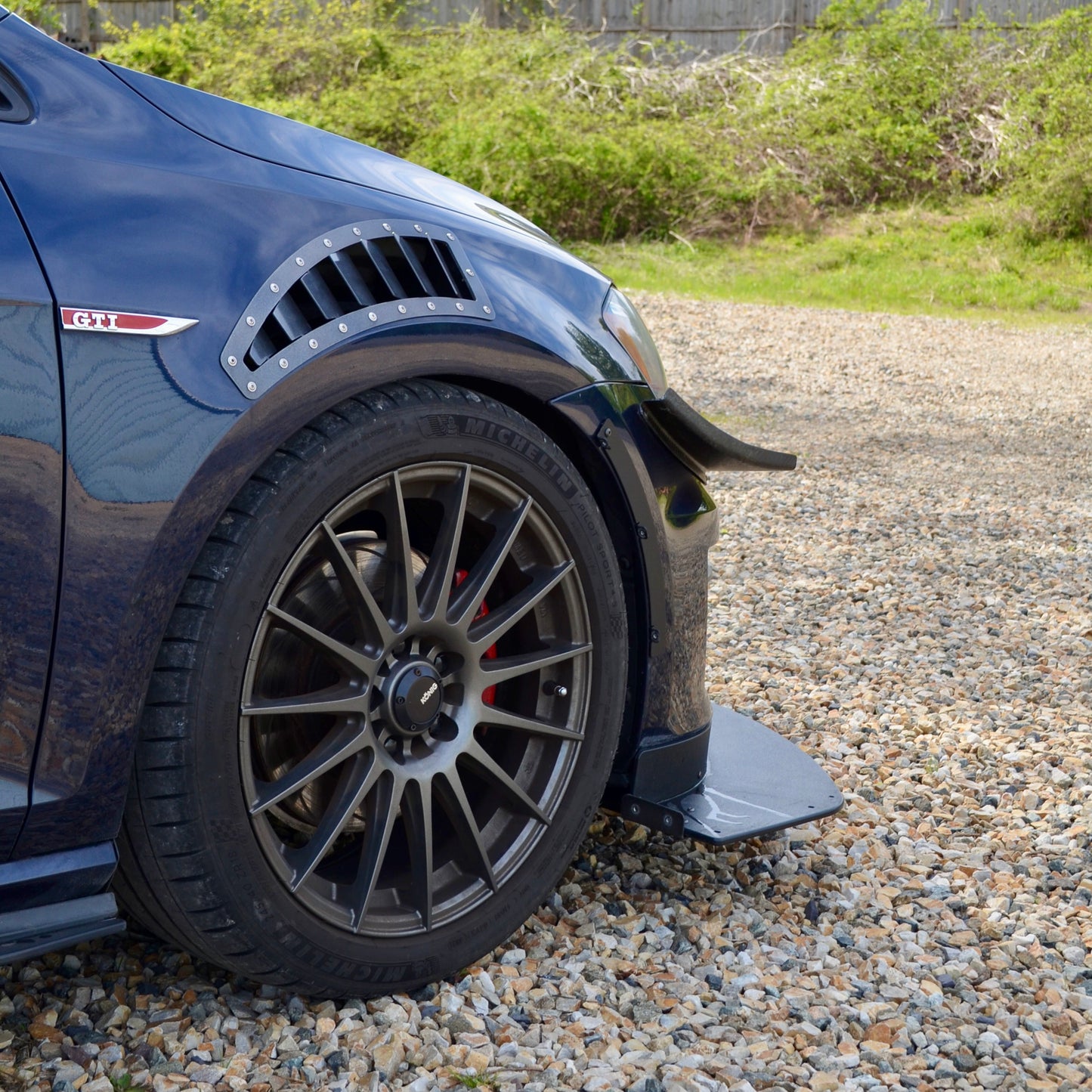

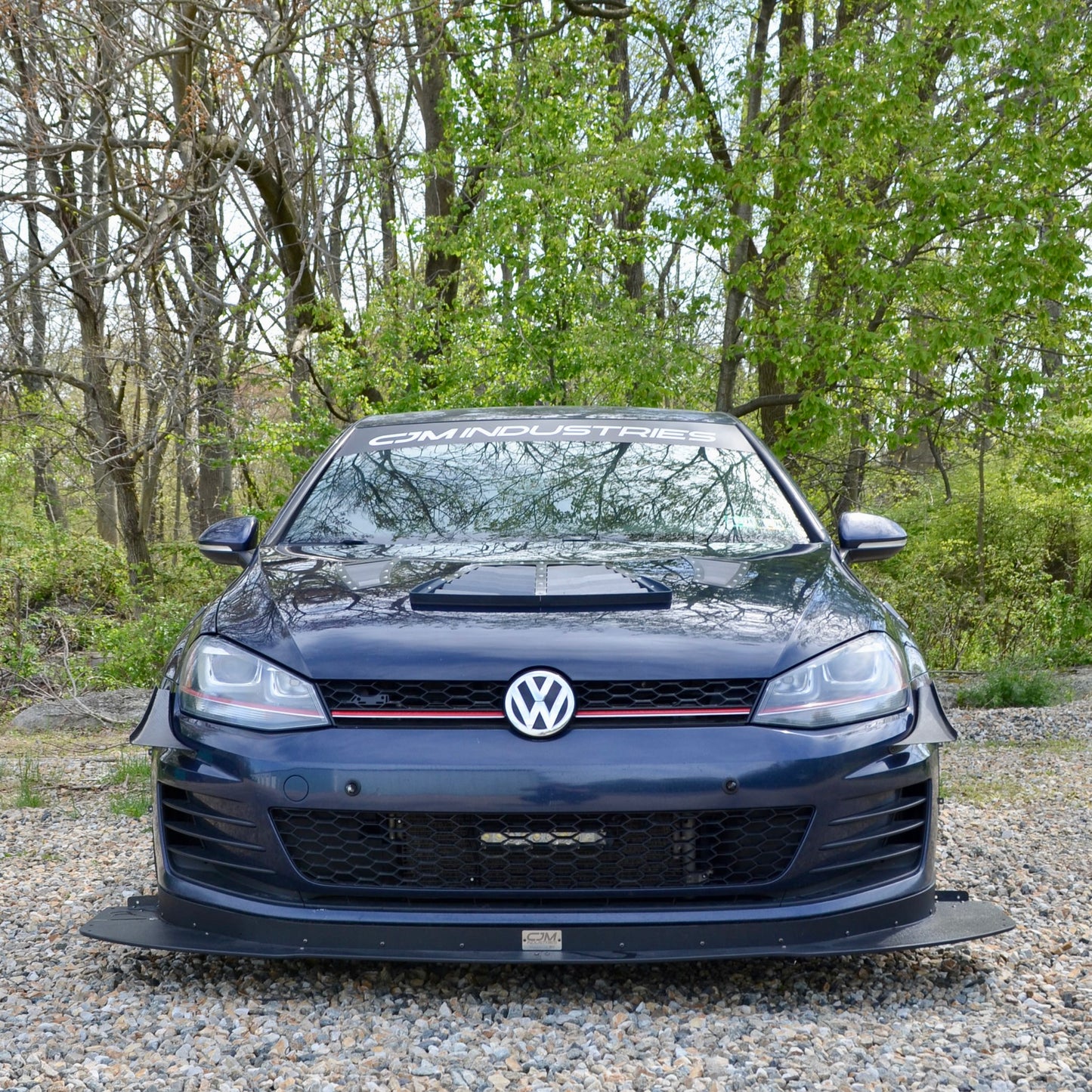

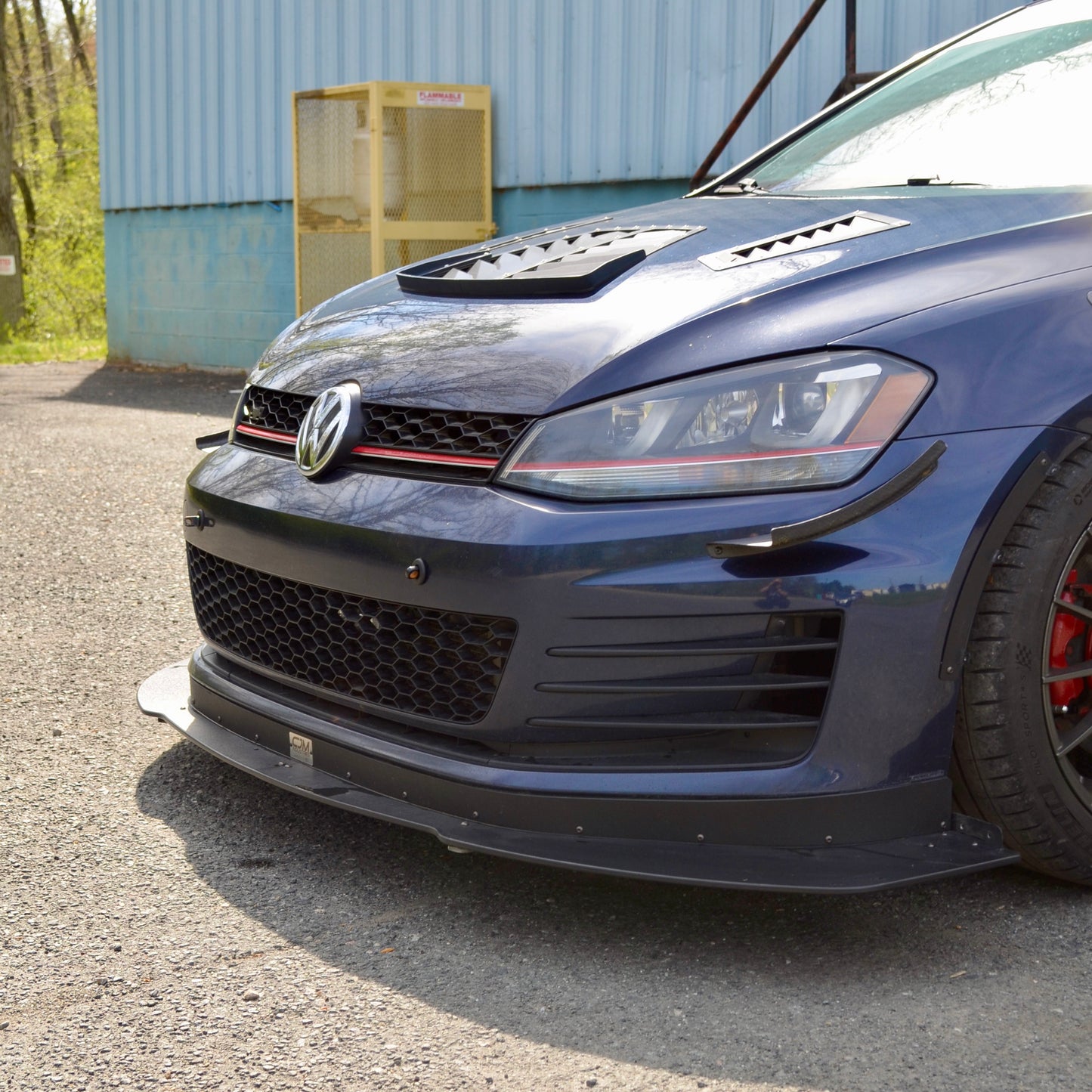

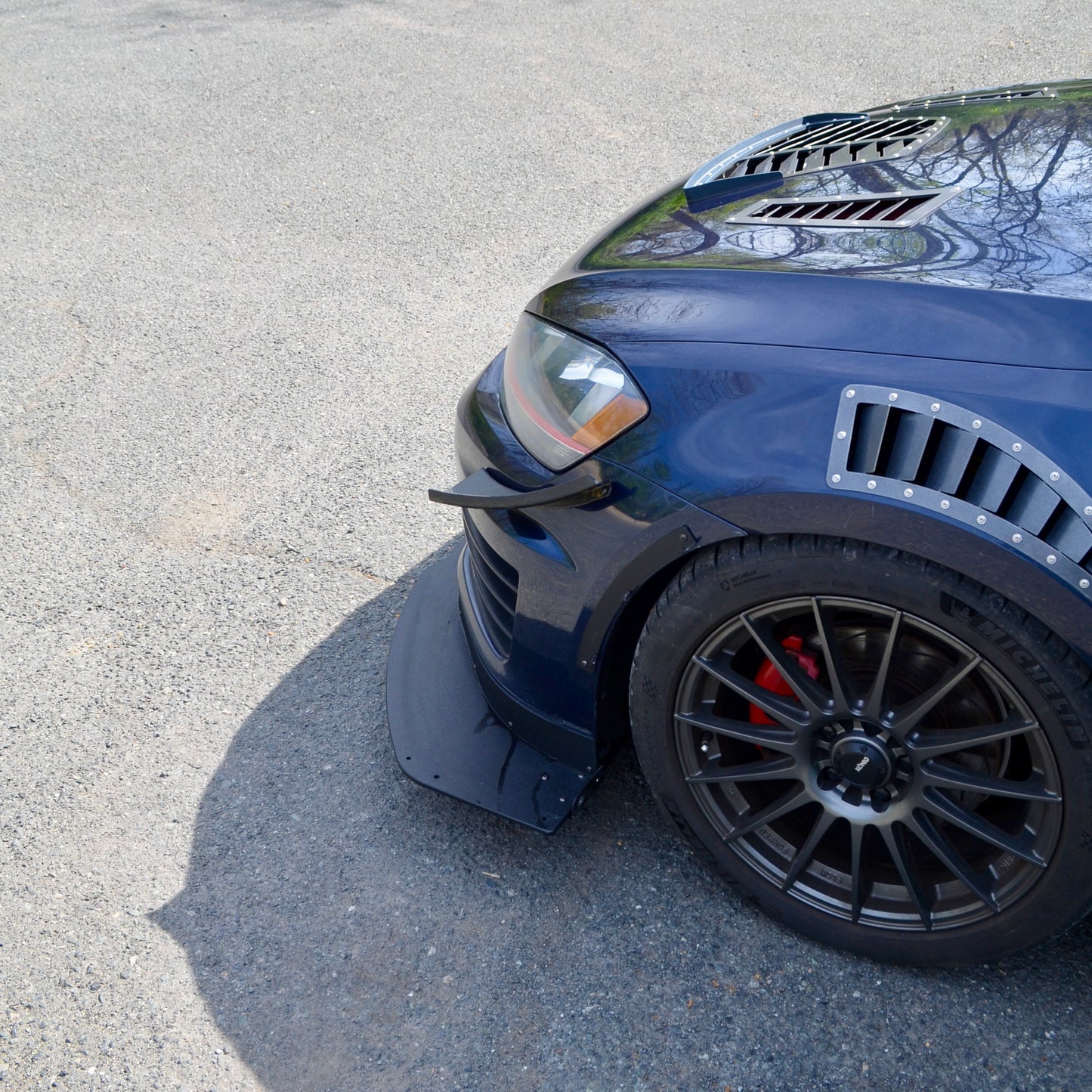

Carbon Canards / Dive Planes for MK7 / MK8 GTI & R
Carbon Canards / Dive Planes for MK7 / MK8 GTI & R
Couldn't load pickup availability
Made to order! Product ships in 3-4 weeks. All sales are final, this cannot be canceled or returned.
MK7.5R fitment is not confirmed as of 4/22/24
Canards can serve a range of purposes. Ours were specifically shaped to improve:
1. aero braking
2. add front-end downforce and drag reduction (compared to a tire spat).
3. Create a lower pressure zone around the front wheel to improve brake cooling.
Our CFD simulations projected that these add 15lbs of downforce, with 2lbs of drag at 100 mph compared to a stock MK7 golf. Yaw improved by 2lbs.
Translating this to the real world, one of our early adopters using this canard improved their top end speed at Summit Point Main by .8 mph, lap time by .3 seconds. Your results will vary, depending on the other aero on your car, spring rates, HP, etc. This information is just a reference point.
So you may be asking, will I feel this? It depends. We have completed a range of CFD testing on various cars and aero setups, followed by on track testing to quantify how much downforce and drag different drivers can feel behind the wheel. While it does range depending on the experience of the driver, the cars suspension and whole list of other factors. We have concluded that ~30lbs of DF at 100mph is the threshold where the average driver will feel a difference. Keep in mind that multiple smaller aero devices on a car can add up to make an impactful difference. If you need to balance a large wing, we suggest pairing these with an endplate on your splitter, and/or a tire spat to cover any tire poke to dial in a good vehicle balance.
Each order includes:
- One driver side canard
- One passenger side canard
- Black stainless steel mounting hardware
- Digital install sheet
Product details:

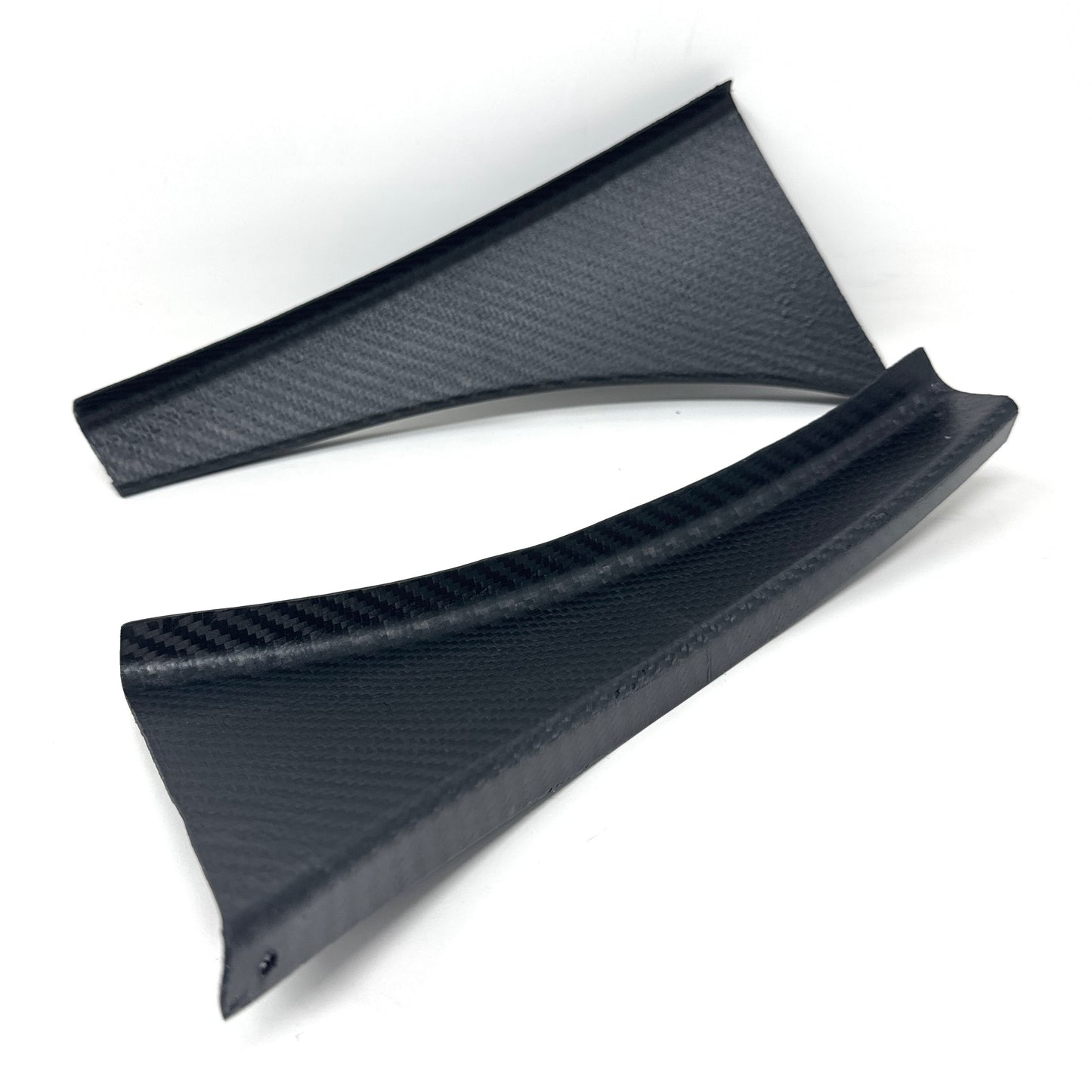

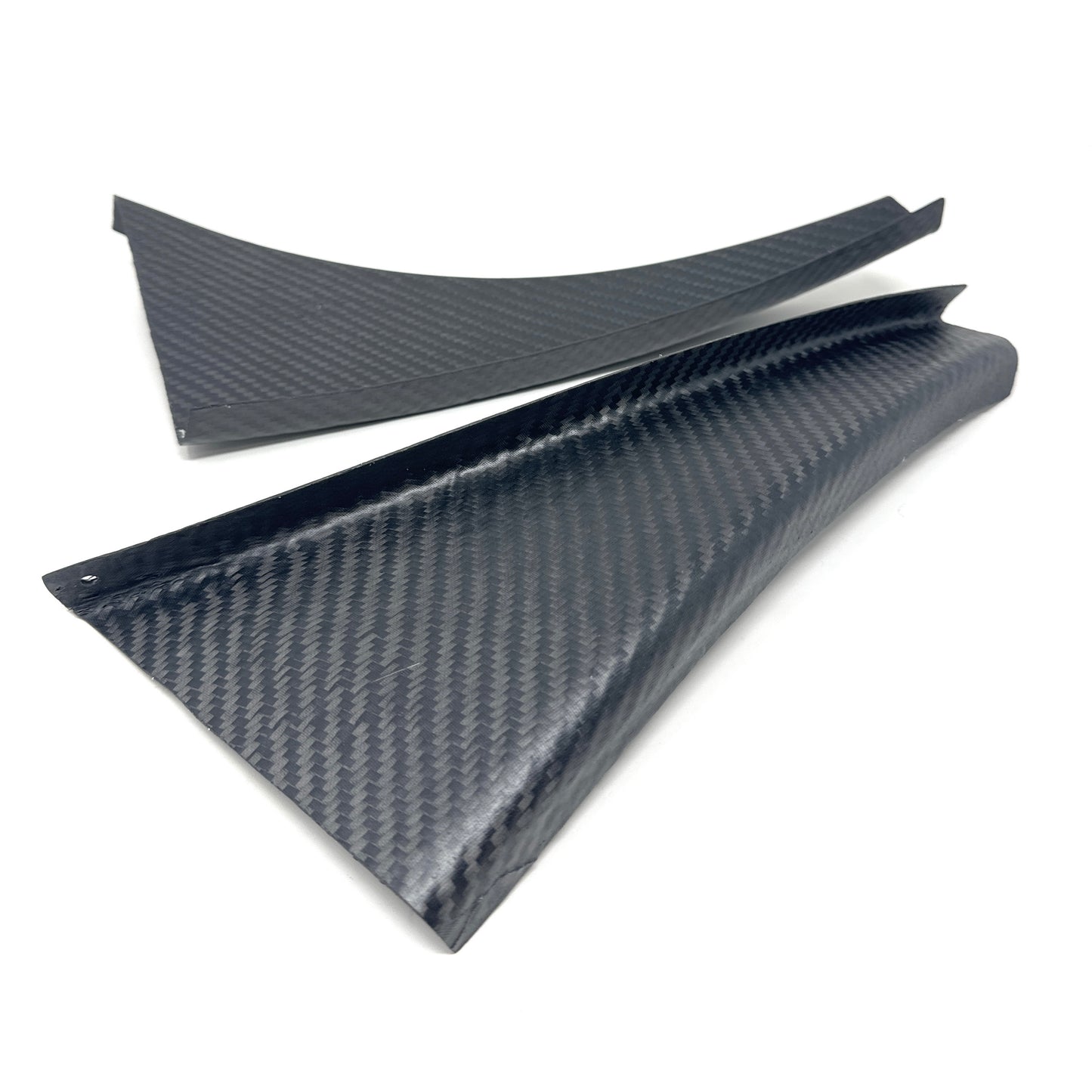

- Formed in 3K twill carbon weave with epoxy vacuum infusion (no fiberglass or fillers here! this is pure carbon).
- Finished with a 2K automotive matte UV clear coating.
- Requires drilling to install
- Each canard weighs 3oz.
- Made in our Phoenixville, Pennsylvania shop.
DISCLAIMER: B level finish - This part is designed to be functional first, and cosmetic second. We strive to achieve a quality finish on every one of these parts. However, be aware that this is a handmade part. The layup, cutting, sanding and clear coat is all applied by hand which can leave behind minor surface blemishes. The visible weave may not be perfectly straight on the part. The underside of the canard has a matte finish from the peel-ply layer.
Fast Shipping & FAQ
Fast Shipping & FAQ
- When will my order ship?
- Orders placed before 12pm EST typically ship the next business day if the product is in stock. Orders placed after 12pm EST will ship 48 hours later.
- Orders placed after 10am EST on Friday will ship on Monday.
- DHL Orders placed after 10am EST on Friday will ship on Monday.
- Tracking will be emailed as soon as we create the label.
- Do your products come with a warranty?
- Yes! We offer a manufacturer warranty on all of our products, the time period ranges by product line, so feel free to contact us for replacement parts. Please be sure to include which pieces you need.
- Do you ship international? What are the fees?
- We do ship direct to some countries outside the US.
- All international shipments are sent DDU and with signature required. You will be responsible for all duties and customs fees and arranging for delivery.
- The customer is responsible for all import duties and customs fees. They are not built into the product cost.
- What is your return & order cancellation policy?
- Please check it out here: Returns & cancelled orders
Still have a question that's not covered here?
Easy Returns
Easy Returns
Warranty:
For part replacements or destroyed products please contact us with the pieces you need! The warranty covers manufacturer defects and failed components for 1 year.
Cancelled Orders:
Once the order is placed, any cancelled orders will be charged a 3.5% credit card/Paypal fee that is deducted from the refund.
If tracking has already been created, cancelled orders will be charged a 10% restocking fee, based on the order total. The customer is responsible for shipping fees incurred and return shipping fees to send the product back for a refund.
We do not provide return labels for orders that ship out of the continental United States. You will have to create your own label to return the product.
Returns:
Our policy lasts 30 days. If 30 days have passed since your purchase, please contact us about the possibility for a refund, store credit or exchange.
Splitters, chassis brackets, diffusers and side skirts are not returnable or exchangeable.
To be eligible for a return, your item must be unused and in the same condition that you received it. There are certain situations where only partial refunds are granted.
25% restocking fee applies to products returned without all original packaging. We will provide a return label in the first 30 days (since ship date) and deduct the cost of the return label from the refund.
After 31+ days customer must ship the item themselves. Shipping charges on the original order are not refundable unless it was a CJM shipping error. We do not provide return labels for international shipments.
For example: $75 part + $6 shipping fee = $81 order total. Customer would like to return because they no longer need it, or ordered the wrong part.
$75 (part cost) - $14 (return shipping label) = $61 refund.
Refunds (if applicable)
Splitters, chassis brackets, diffusers and side skirts are not refundable.
Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a few days.
Late or missing refunds (if applicable)
If you haven’t received a refund yet, first check your bank account again.
Then contact your credit card company, it may take some time before your refund is officially posted.
Next contact your bank. There is often some processing time before a refund is posted.
If you’ve done all of this and you still have not received your refund yet, please contact us at Support@cjmind.com.
Exchanges (if applicable)
We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at support@cjmind.com, we will issue a return number and provide a return address.
Shipping
Please contact us before returning any merchandise. We will provide a return label in the first 30 days (since ship date). Depending on where you live, the time it may take for your exchanged product to reach you, may vary. We don’t guarantee that we will receive your returned item. We are not responsible packages lost by the carrier.
Install Info
Install Info
Install sheets can be found on CJMinstall.com. We are in the process of digitizing all sheets. If you can't find the copy you need, please email us! support@cjmind.com
Carbon Fiber & Fiberglass - Finish Levels
We have created this level system to set expectations when ordering a composite part from us. All parts are checked for adequate epoxy resin penetration through the layers. The level is describing the surface finish, not the quality of the composite. We use hand layup, vacuum infusion, and pre-preg (dry carbon) materials depending on the volume and size of the part. This list applies to all composite parts.
Similar to drywall in a house, we chose these levels because different use applications come with varying priorities.
For example: carbon parts on the bottom of the track car don't need to look as good as a mirror cap at eye level. The parts under your car will get peppered with road debris; so cost and function is often more important than cosmetics. C and D level parts have the least labor involved, and therefore provide the best value. All of our composite parts are made in Pennsylvania, USA. Yes, it is expensive - but every purchase helps keep skilled labor in the US.
- A level - Thick gelcoat or epoxy top coat to even out the entire finish. Part is sanded to a smooth finish. You can buff it yourself for a perfect finish. These parts will weigh more than a C level part from the added surface coatings.
- B level - All porosity is covered in a top coat, but may have some nibs and imperfect edges. These can be sanded down when you receive it, and more top coats applied if you want to improve the appearance of the part.
- C level - Part is cut to size, and clear coat is applied. Some areas may have porosity in the outer surface. We consider these parts the most affordable "finished" option, and best suited for a track car where they will see wear and tear, so appearance is not the primary goal, but function and weight savings is.
- D level - Raw part pulled off the mold that is cut to size with no top coat. We wash off the mold release. This is considered a DIY part that you can cut to size for your application and finish it yourself with a rattle can clear coat. Also applies to scratch and dent parts that have distorted weaves or other cosmetic defects.
