Swan Neck Wing for MK6 GTI & R models

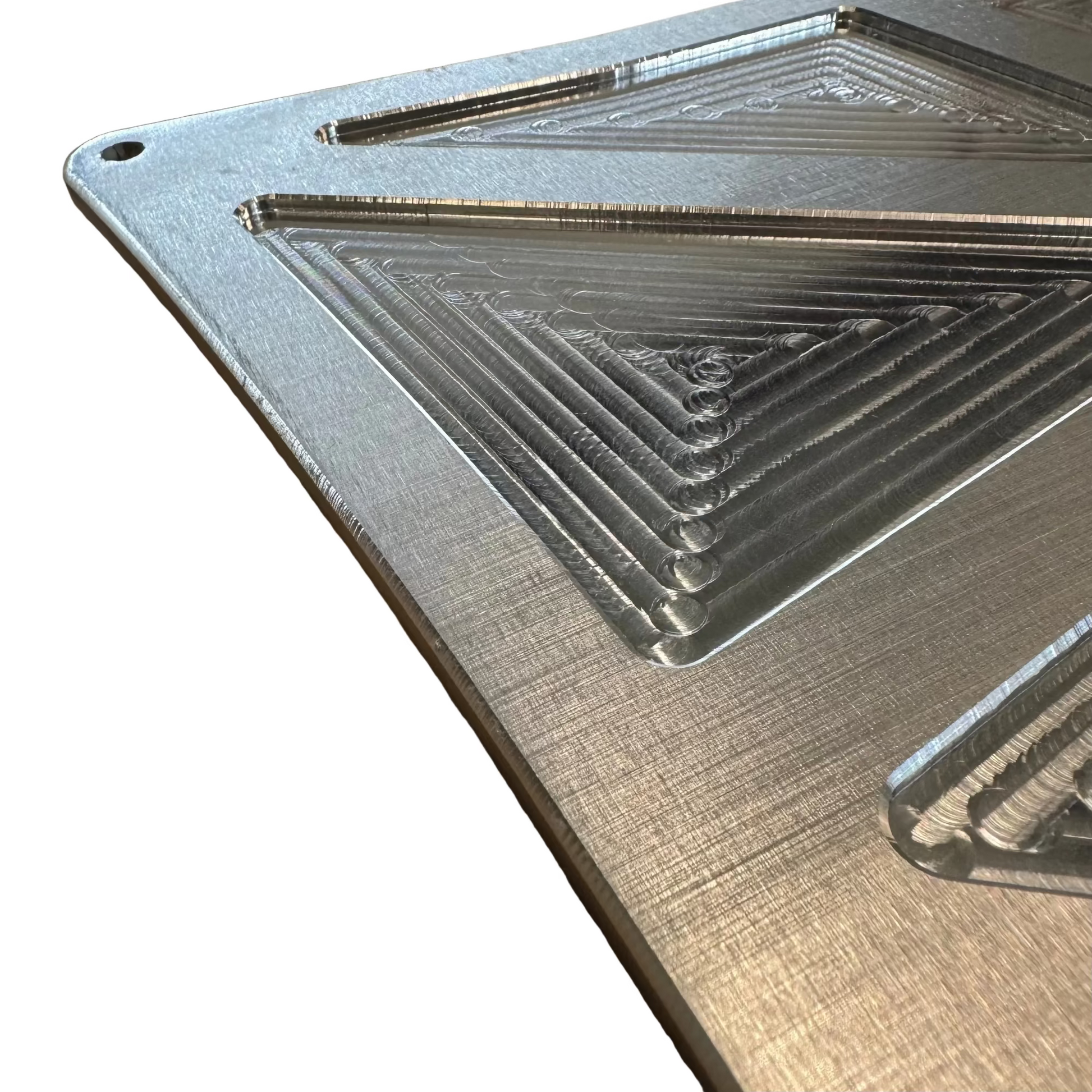

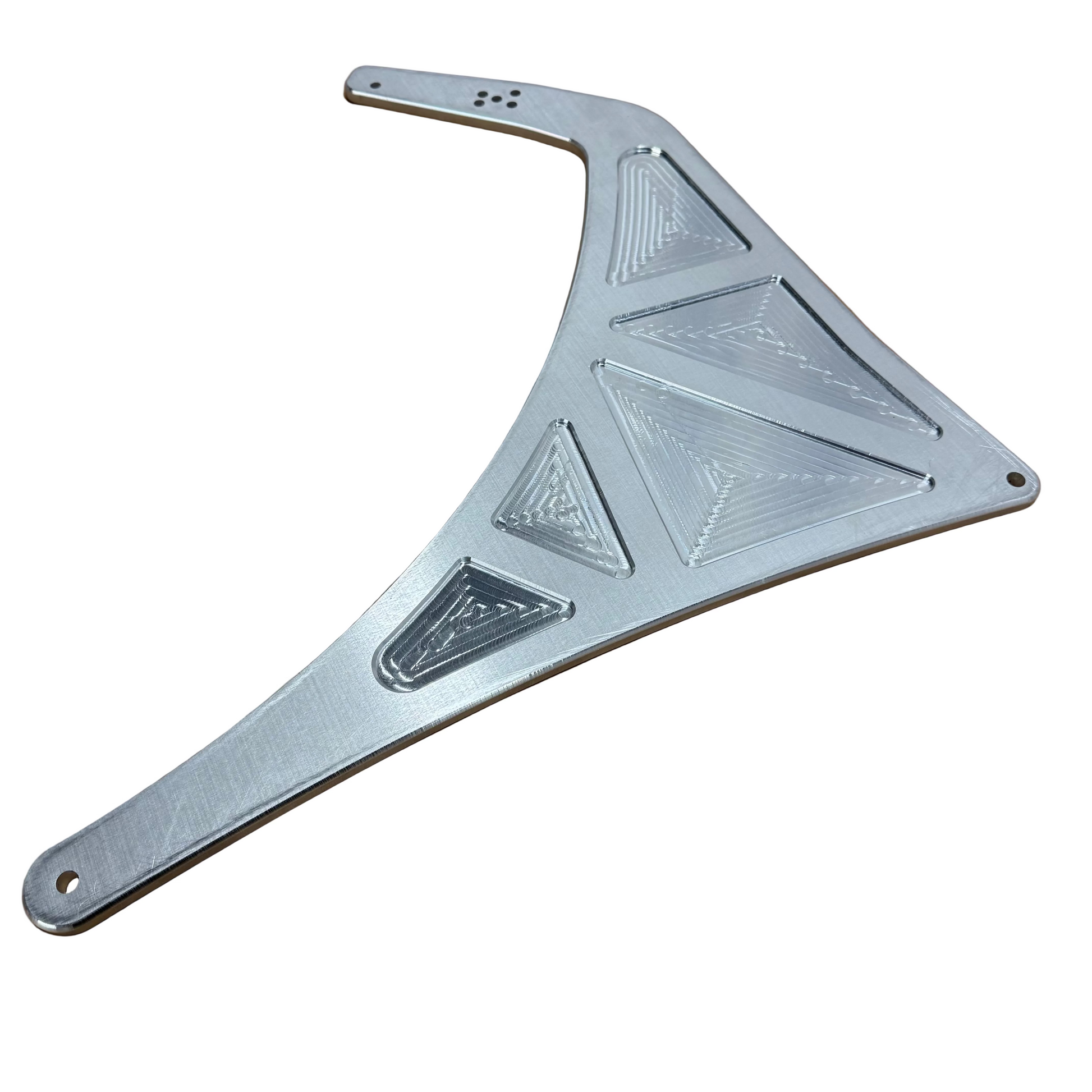

Our swan neck wing utilizes a 55" aluminum foil supported by two billet 6061 aluminum uprights. It weighs in at less than 20lbs when powder coated, and provides significant downforce relative to its span (See the chart for details). With multiple angle of attack positions built into our AOA mounts, you have adjustment to dial in the balance of your car. We include a suggested starting position to maximize downforce and minimize drag penalty.

Our brackets mount under the spoiler cap, near the main hatch pins to improve strength compared to other options on the market. Additionally we provide nut plates, with preinstalled, pneumatically set hex shank rivnuts. All you need to do is drill holes for install, no riv-nut tool required! We retain the OEM 3rd brake light, and the rear wiper is still functional also. The endplates are attached with bolts, and can be swapped to carbon or aftermarket options to further improve this wings performance.

The raw aluminum is a great option if you plan to vinyl wrap the parts. The Gray 6R shown in pictures was custom powder coated a metallic black. Our off the shelf option is a lightly textured black.

Install Process: Youtube Install Video

Fits MK6 GTI and Golf R. It can be installed on a base model golf, however our included fixture and trim plate will not align as shown in the video because the base model does not have a spoiler cap.

Kit Contents:

• 1 - 55" aluminum airfoil
• 2 - aluminum endplates
• 2 - billet uprights
• 4 - mounting bracket sets for hatch
• 4 - nut plates for hatch brackets
• Black hardware
• 2 - billet AOA mounts (preinstalled on foil)
• gloss black trim piece for drilling positions on the cap and for use as a dress up plate on the hatch.

INSTALL:

• Requires cutting slots in the spoiler cap.
• Requires drilling holes in the hatch below window.
• Requires drilling holes in the hatch under the spoiler cap.
• This product uses the same 55" wide aluminum airfoil as the Yeti V2 wing.
• This product cannot be returned or refunded.

Are you interested in just a set of brackets and uprights? We can also make these to your spec to fit other wing foils. Email: support@cjmind.com to inquire.
