V1 - MK7/7.5 GTI & Golf R 2015-2020 Chassis Mounted Splitter/Lip

SKU: 2020052-7CB-SR-40

Regular price $799.00 USD
Regular price Sale price $799.00 USD
Sale Sold out
Shipping calculated at checkout.
Bracket Assembly
Blade Size
All deliveries are carbon neutral
Powered by Shopify Planet

All sales are final. This item does not qualify for free shipping

This product ships in 3-5 business days.

Made in USA - 2 year warranty.

This is our V1 kit. If you are interested in a V2 with the integrated air dam, it can be found here.

Please read these product details thoroughly for fitment and installation requirements. This can be completed in a driveway with basic tools. Please review the install sheet and tool list to understand what is involved in the process. Professional install recommended if you are not comfortable removing the front crash bar.

  • Brackets & rods come in raw aluminum, expect some visible imperfections in the material from the cutting and bending process.
  • This will not fit with any front mount/twin intercooler.
  • If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
  • Speed tested to 125mph.
  • Requires drilling four 11mm holes in the crash bar for install.

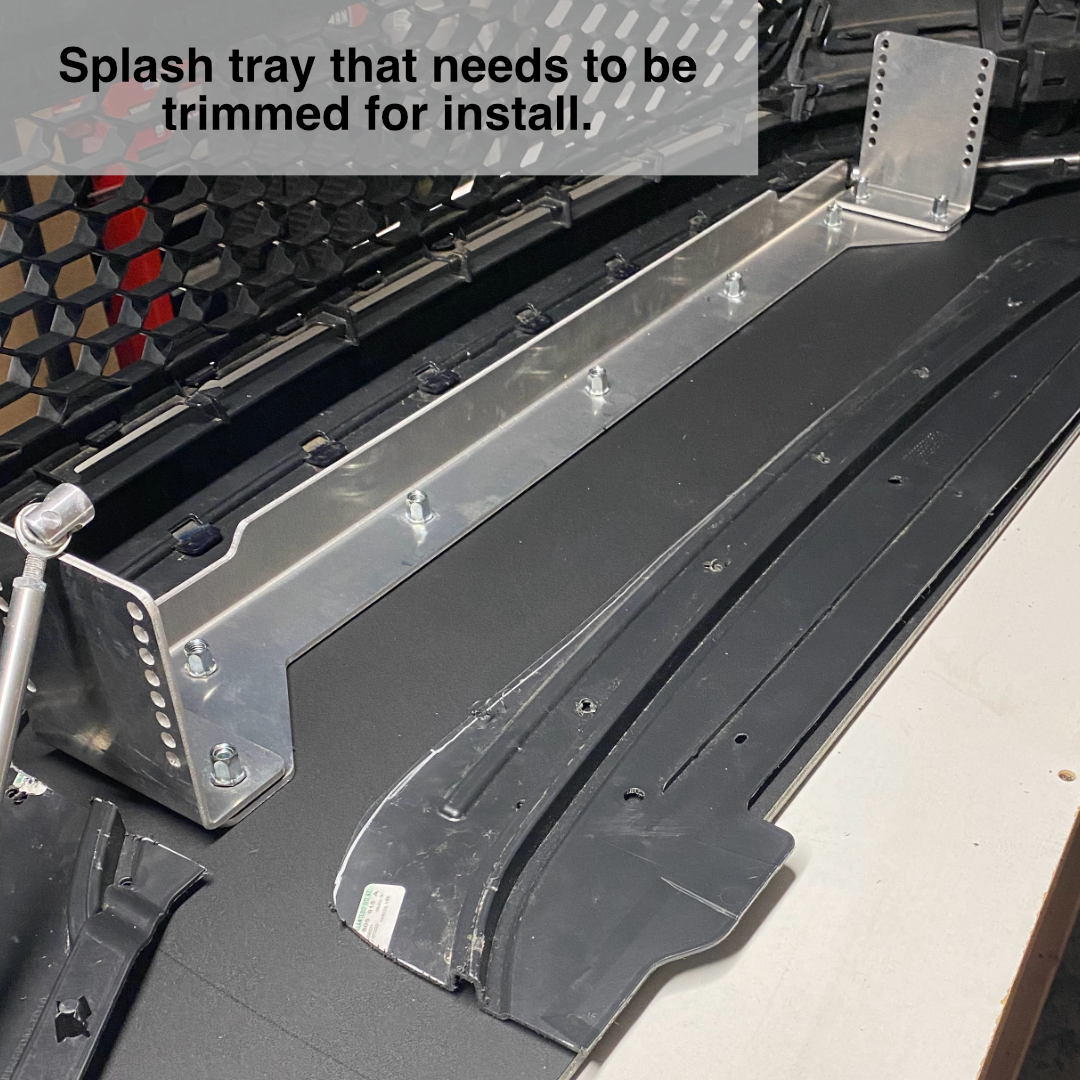

  • Trimming of the factory splash guard is required (not the bumper). Install sheet can be reviewed here. Splash guard trimming template included.

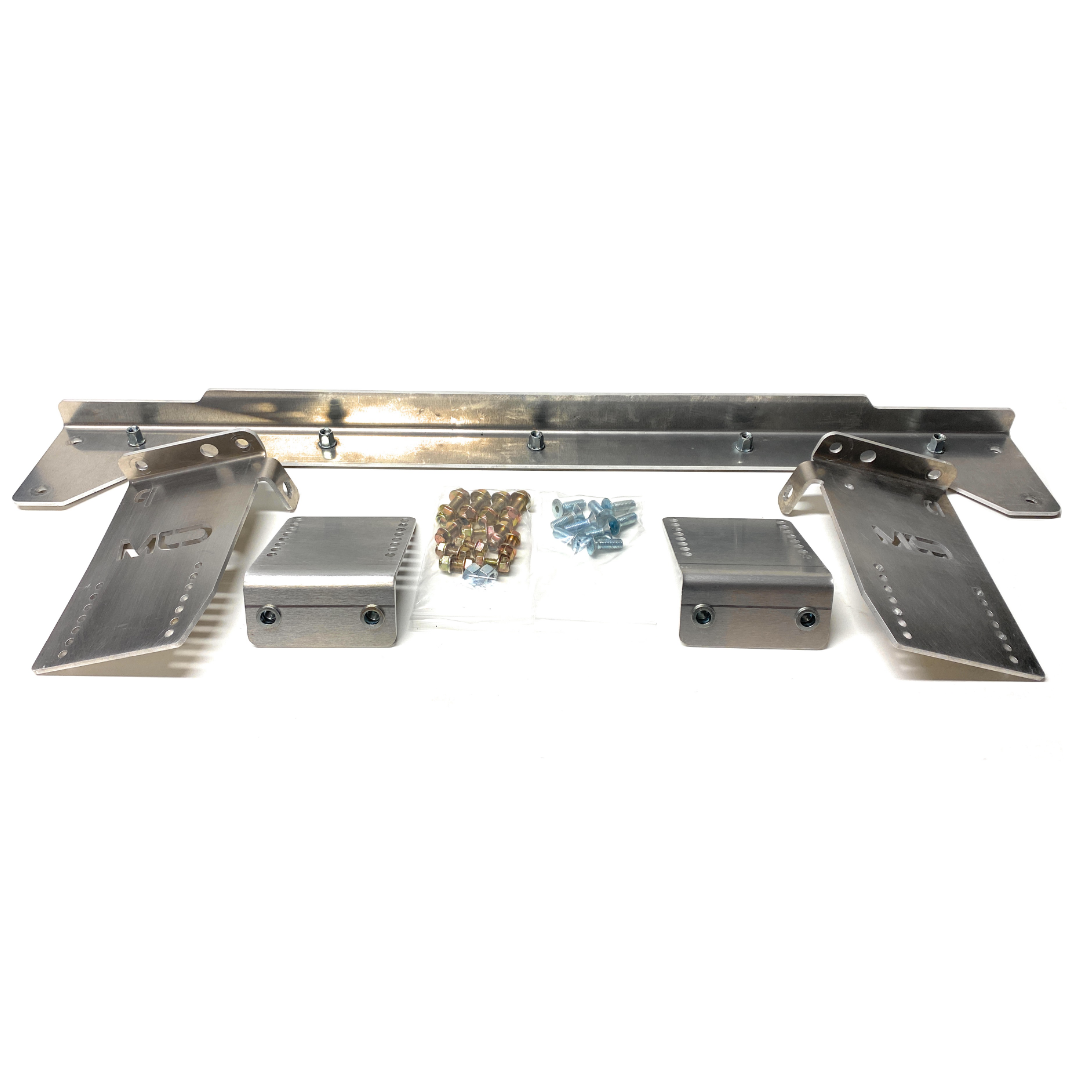

  • Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice.
  • This is a great option to DIY your own blade, or purchase the entire assembly ready to bolt on. (You can buy just the brackets, or the brackets with rods and blade).
  • Designed for blades with up to 80mm of stick-out. Rods suggested on blades over 60mm if your car will exceed 100mph to prevent flutter of the front edge (60mm lip doesn't need them). Warranty is void if you use a blade larger than 60mm without front chassis mounted rods.
  • The brackets and rods are raw aluminum and contain zinc coated steel hardware.
    • If you are in a region that salts the roads in the winter, this will increase the need to clean and maintain each component more frequently. We can apply a clear coating called Sharkhide, but it will not last forever, you will need to recoat them over time to If you want to prevent discoloration over time. You can also powdercoat or paint with a rattle can for easier maintenance.

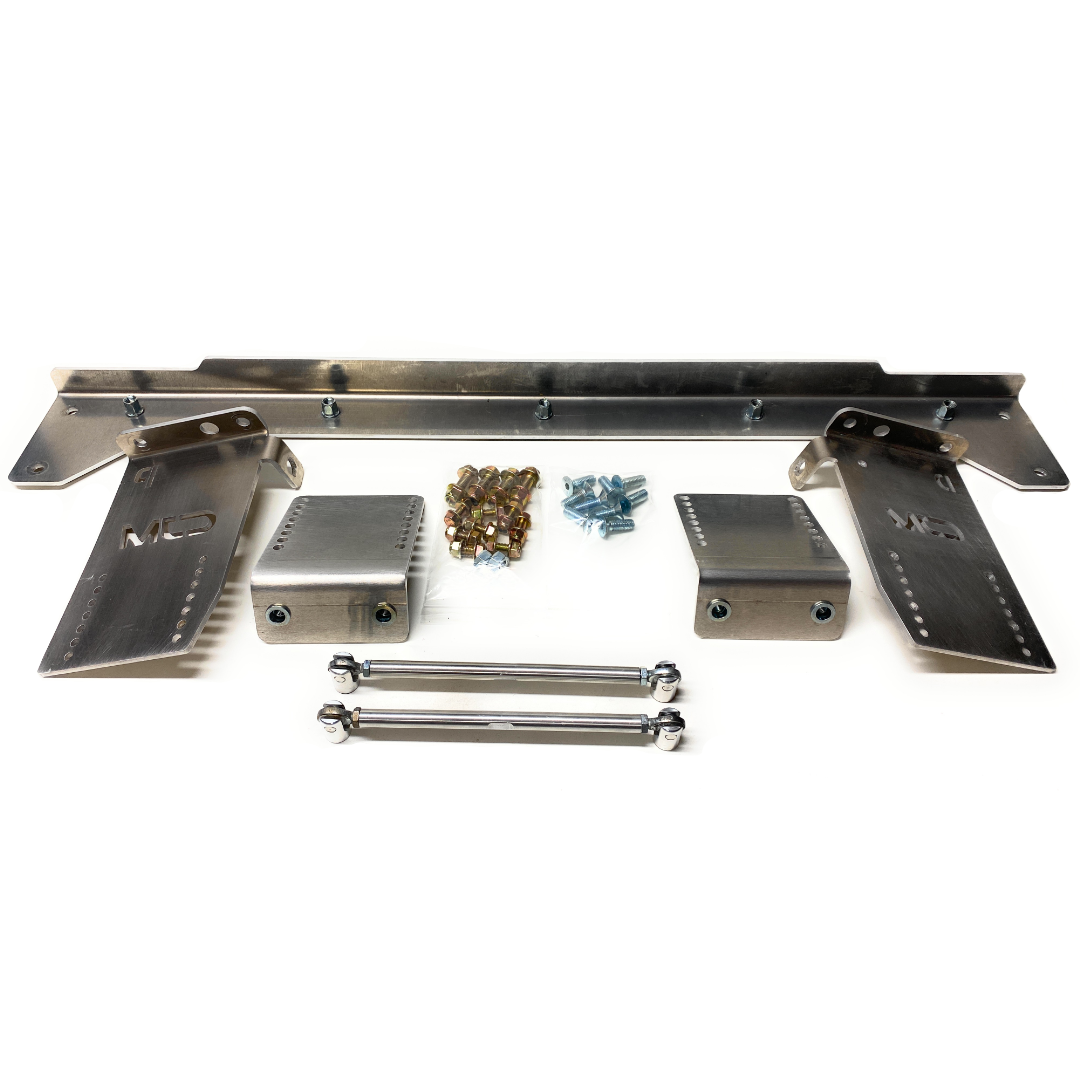

    Each Order includes:

    - Top Driver & Passenger side Bracket

    - 2x bottom Brackets with pre-installed rivnuts for the lip/blade

    - Center support brace with pre-installed rivnuts for the lip/blade

    - Flange head bolts and nylock hardware for adjustable height settings

    - M10 Flange head bolts and nylock hardware to mount to the Chassis.

    - M10 countersunk hardware to attach a blade to brackets (3/8" or thinner blade)

    - Blue medium threadlocker for blade bolts.

    - Printed Install Sheet with pictures

    - Template to trim plastic splash guard



    Add on options (not included):

    - Blade - 9mm thick black textured UV resistant plastic with a radiused edge and pre drilled countersunk holes - 40mm, 60mm, 80mm - measured from bumper front edge out.

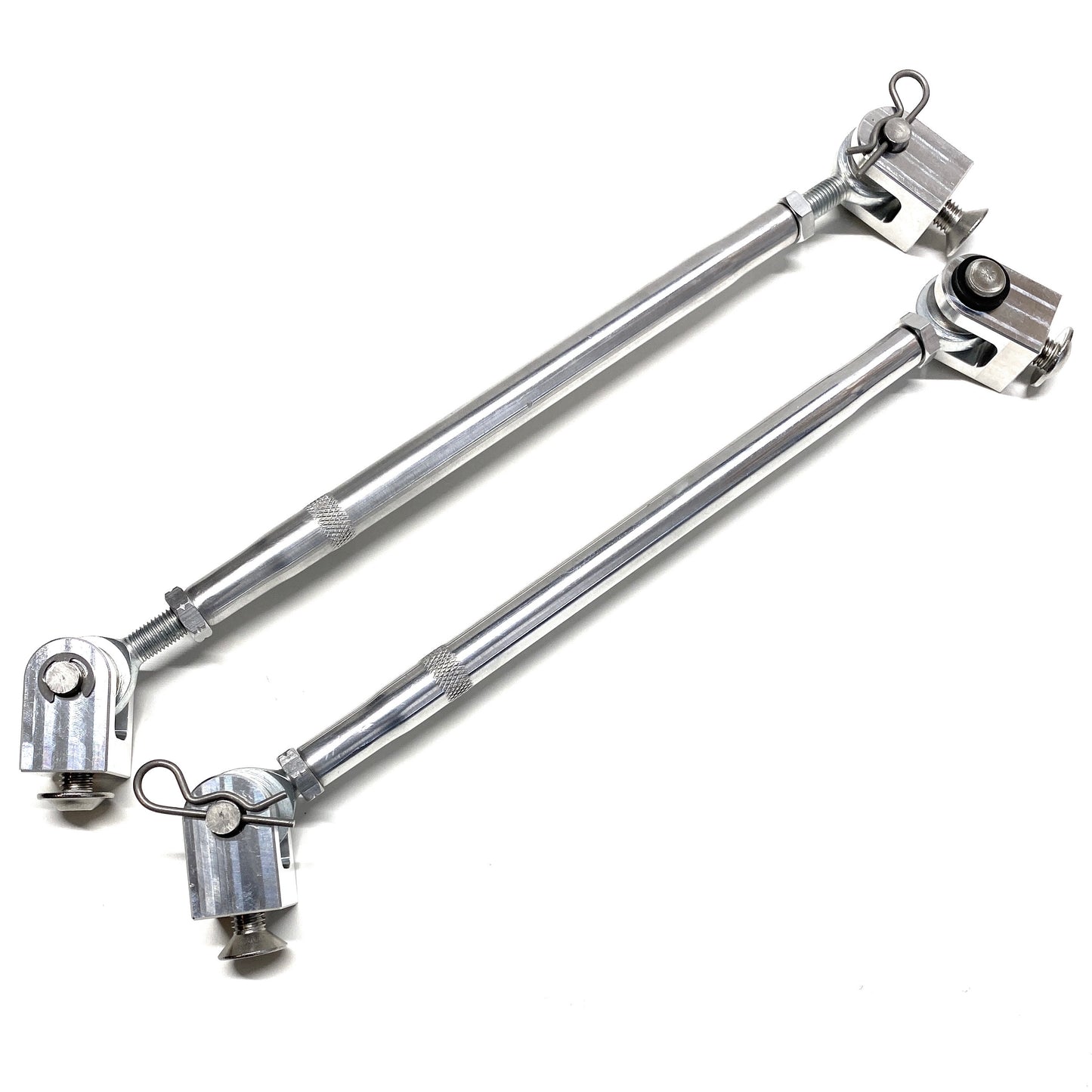

    - Side support rods - Aluminum rods, coated steel heims, stainless hardware. These are strongly recommended for any blade except carbon fiber.

    - Front support rods - Aluminum rods, coated steel heims, stainless hardware. Recommended for blades over 60mm to prevent flutter. (60mm does not need them).

    - Drill bit - 11mm step bit & 4mm pilot bit


    Weights -

    Bracket assembly with hardware - 7.9 lbs

    A pair of rods (front or side) - 13oz

    40mm lip/blade - 12lbs

    60mm lip/blade - 14lbs




    Brackets ship in a 40"x8"x8" box

    Blades ship in a 24"x72"x1" box



    Disclaimer - Off road use only, not intended to be used on public roads. This product may alter the handling of the vehicle. The buyer is responsible for all modifications made to your car. CJM Industries llc assumes no responsibility or liability as a result from altering your car with our products. This product may not comply with Federal, State, Province, and/or Local laws, ordinances, and regulations. Buyer takes all responsibility to conform to all applicable laws and regulations for road use, especially pertaining to safety.
