  • Digital file - you will receive a file, not a physical part.

MK7 & 7.5 Golf GTI & R Grab Handle Delete Plugs - (DIGITAL DOWNLOAD - Non Refundable)

MK7 & 7.5 Golf GTI & R Grab Handle Delete Plugs - (DIGITAL DOWNLOAD - Non Refundable)

$19.99
$19.99
Sale Sold out
Shipping calculated at checkout.
  • Digital file - you will receive a file, not a physical part. This cannot be returned or refunded.

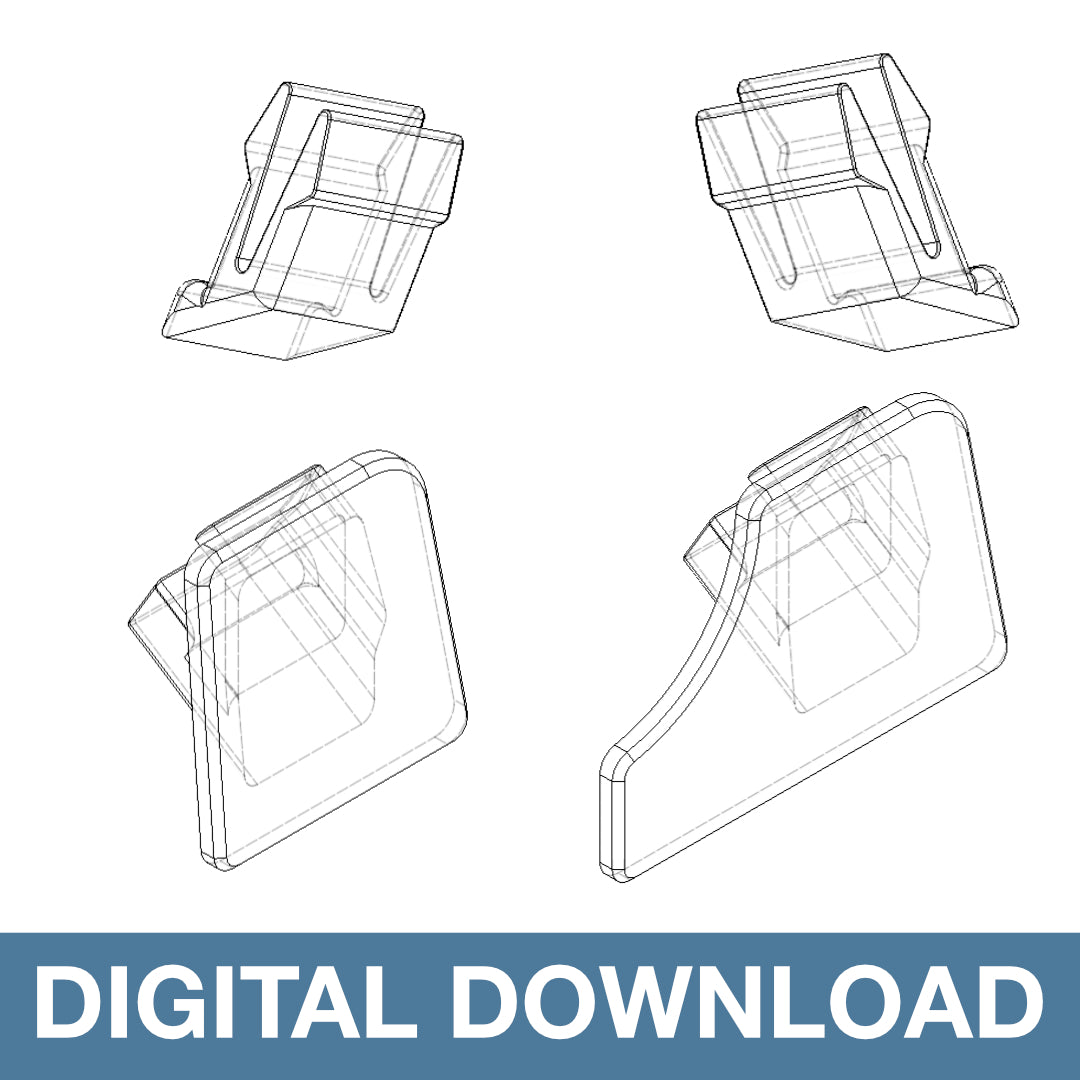

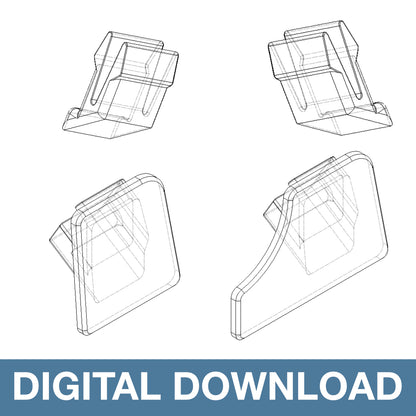

  • These are designed in two parts, to ensure strength during printing, and to match material properties for each function. The clip should be printed in PETG or ASA to allow for flex. The cover should be printed in Matte ABS, PC, or low gloss ASA to blend into the headliner. The cover part needs to be strong enough to retain the dovetailed clip during install.
  • Based on USDM spec Golf models. These have not been test fitted on international models.
  • Use 3+ perimeters, .16mm Layer height, 15% infill +, no brim needed.

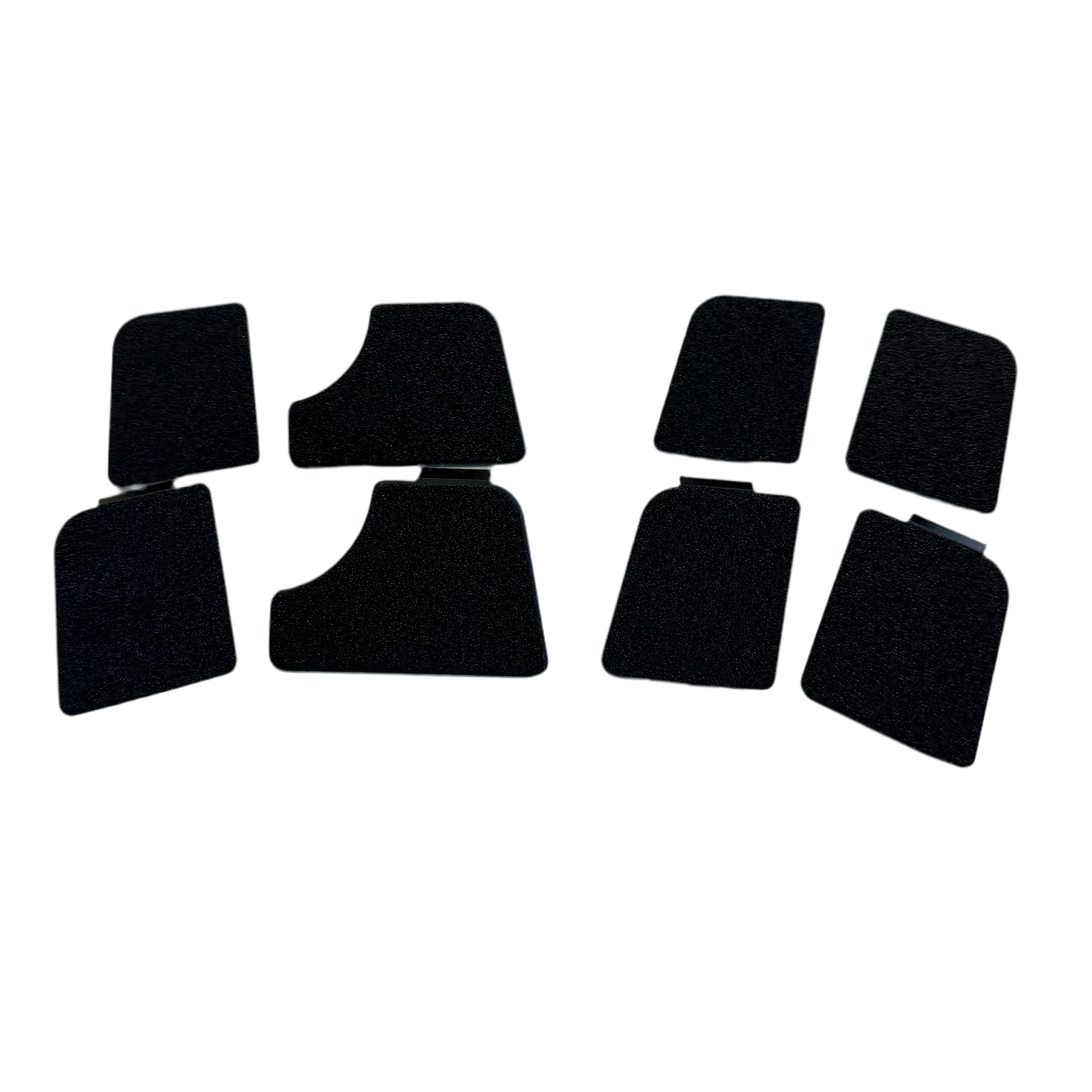

  • 4 Files included:

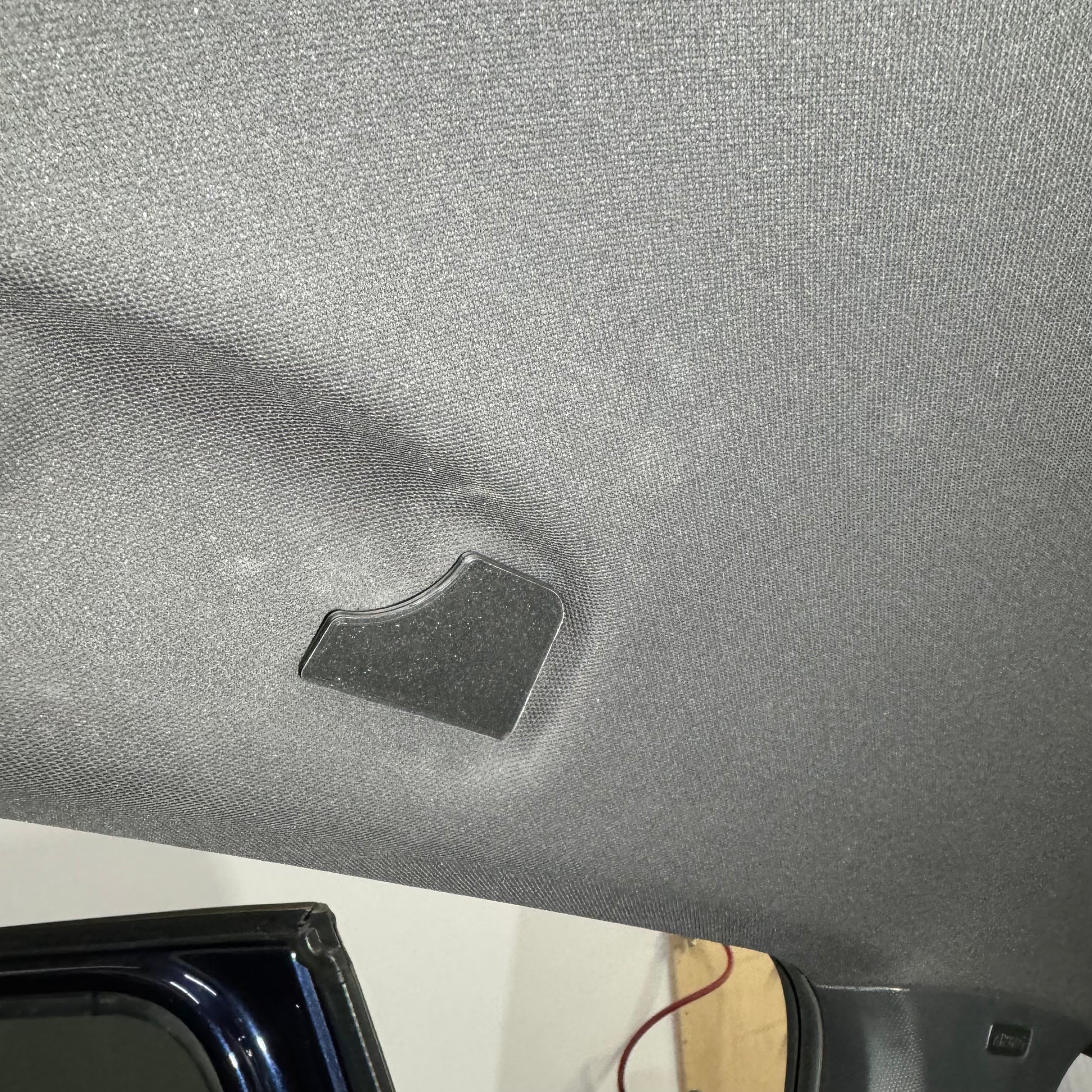

    • Large Cover - print face down - with support on build plate only.

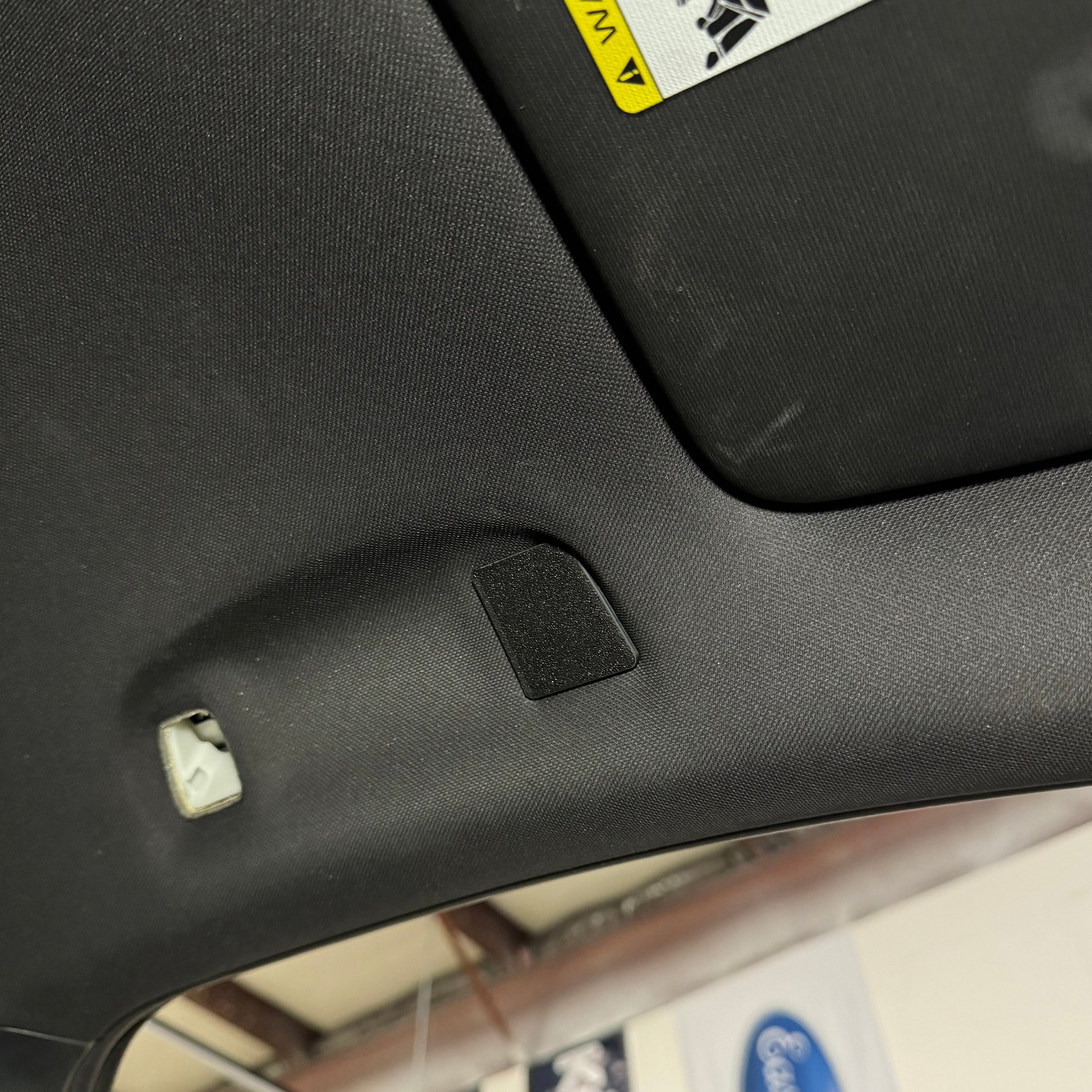

    • Small Cover - print face down - with support on build plate only.
    • Clip Left - print on side
    • Clip Right (mirror image) - print on side

Whats Included?



Suggest Print Settings

Materials: ASA, ABS, ABS composite, PC
Layer Height: .2mm for pods, .16mm for vents
Perimeters: 3 or more
 Infill: 20%, pattern is your choice
Nozzle Size: .4mm
Support material: Tree supports as needed.




    View full details

    3D FILES - TERMS OF USE

    This is a 3D file download strictly for personal use. It cannot be redistributed, or remixed for free or for profit. It cannot be used in mass manufacture or to profit in any form. We are offering these products as a trial. If they appear on free sites we will not release future files.

    Please respect our policy and do not ruin it for everyone.

    If you would like to obtain a license and print this part for profit, contact us to inquire about becoming a an approved vendor. support@cjmind.com

    Approved vendors as of today:

    • None
