Chassis mounted splitter - MK6 Golf R (2010-2012) V4
Chassis mounted splitter - MK6 Golf R (2010-2012) V4
This product cannot be returned.
Couldn't load pickup availability
This product ships in 3-5 business days. Made in USA - 2 year warranty.

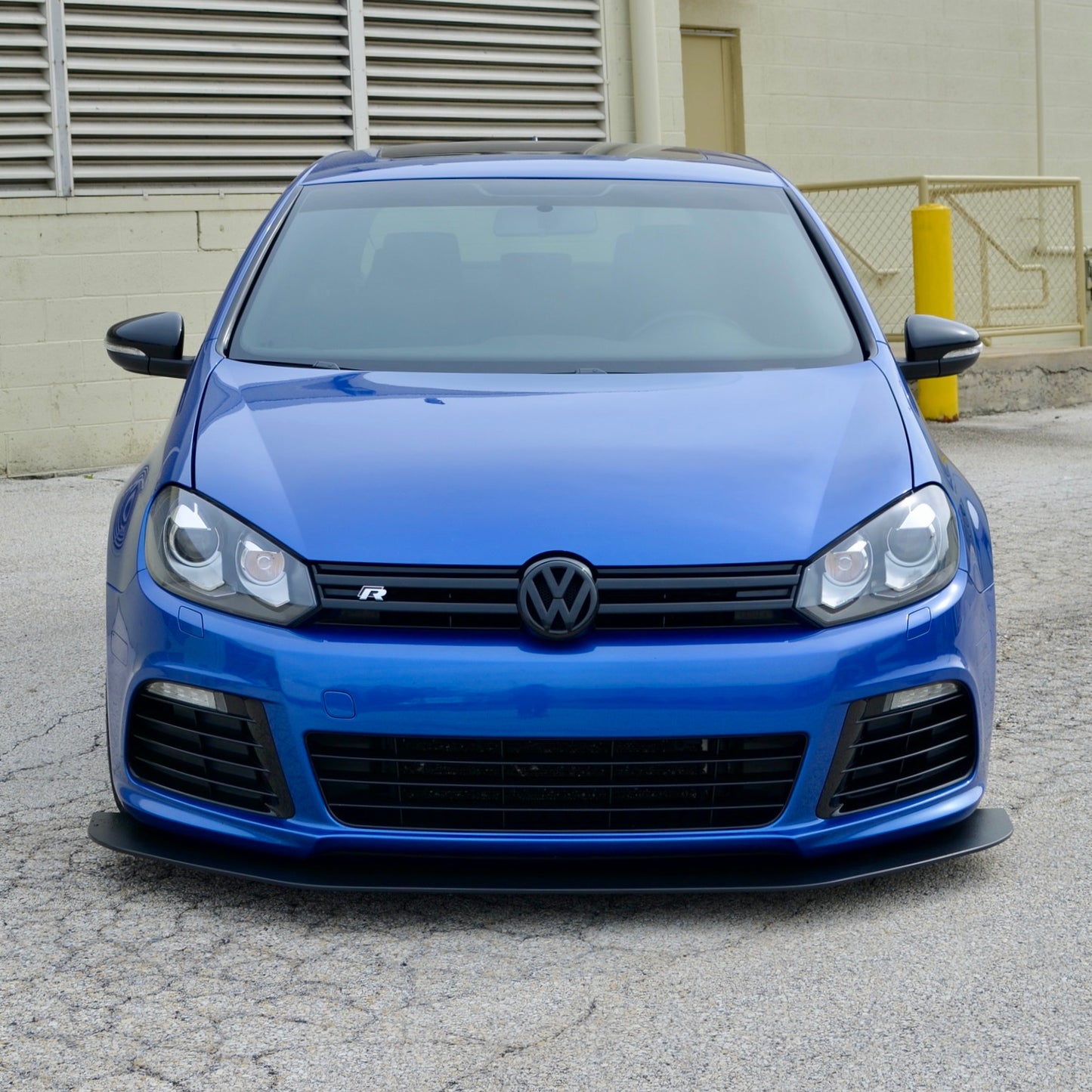

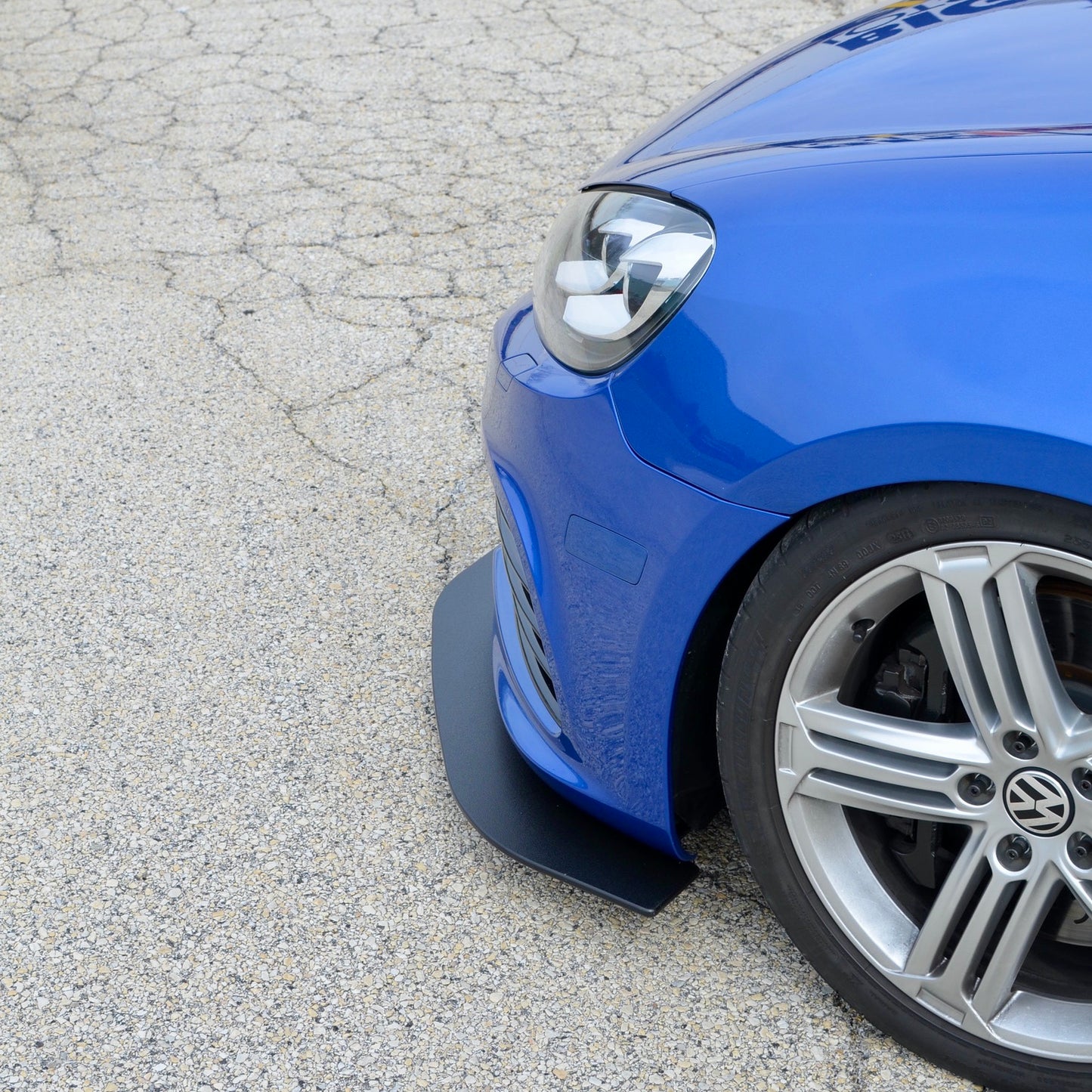

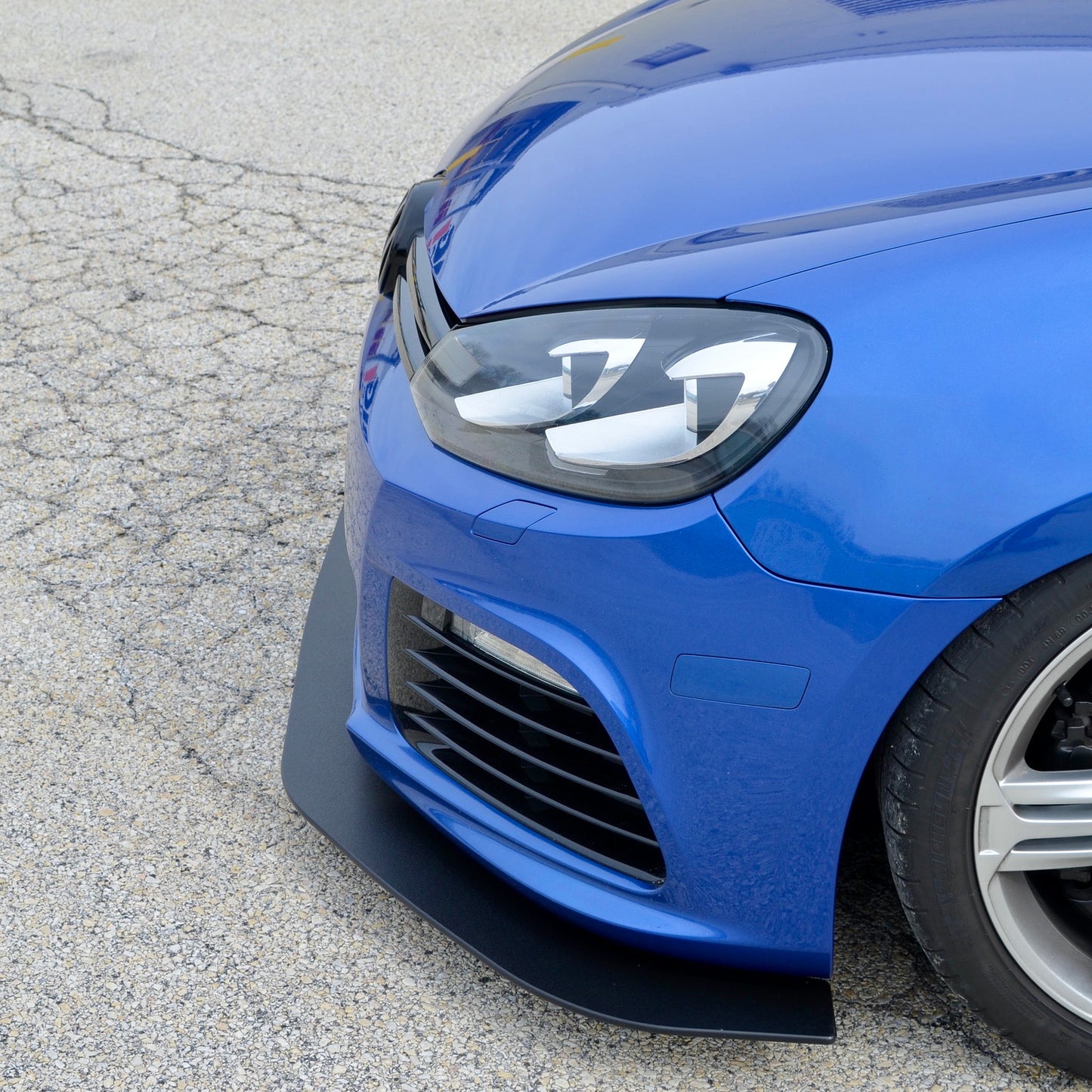

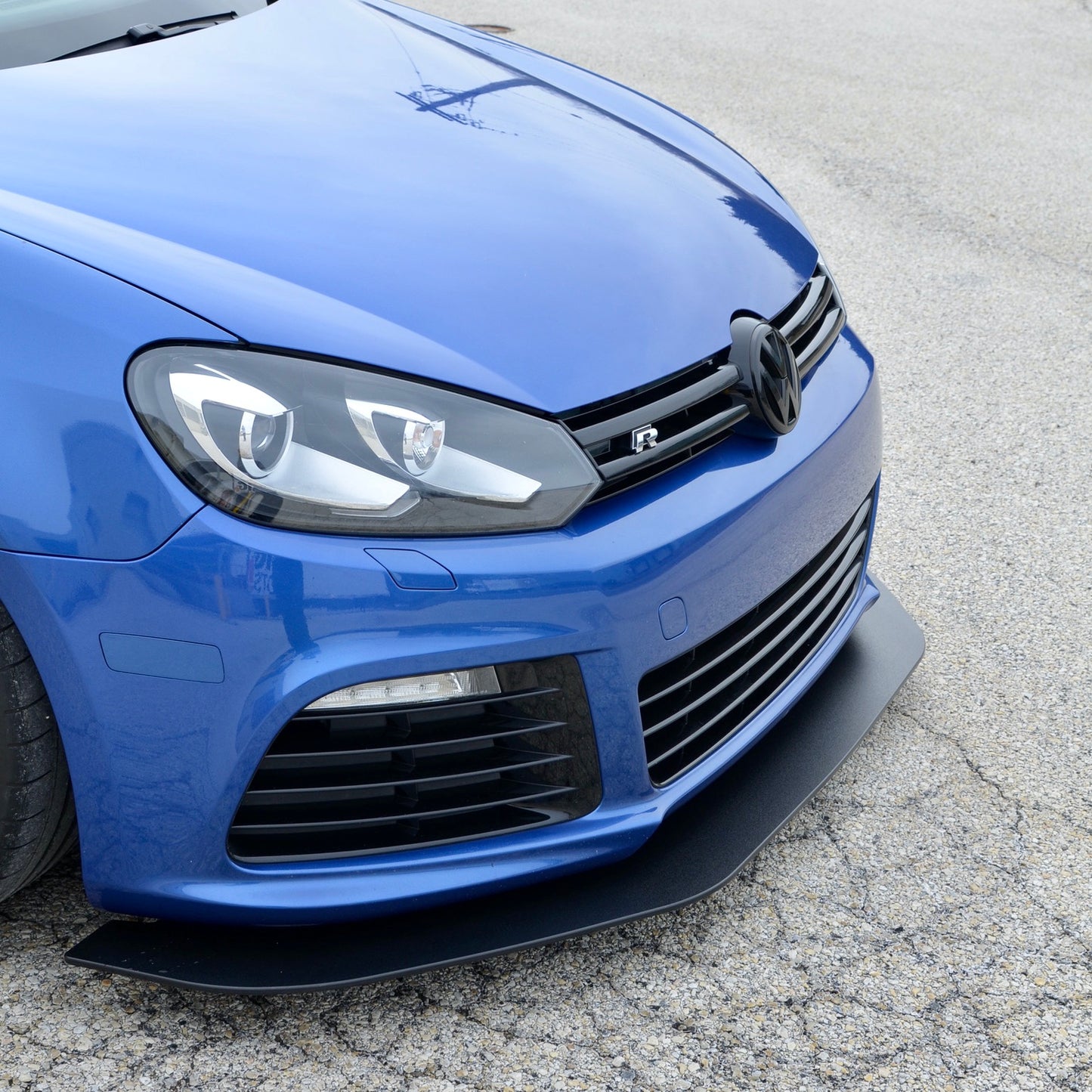

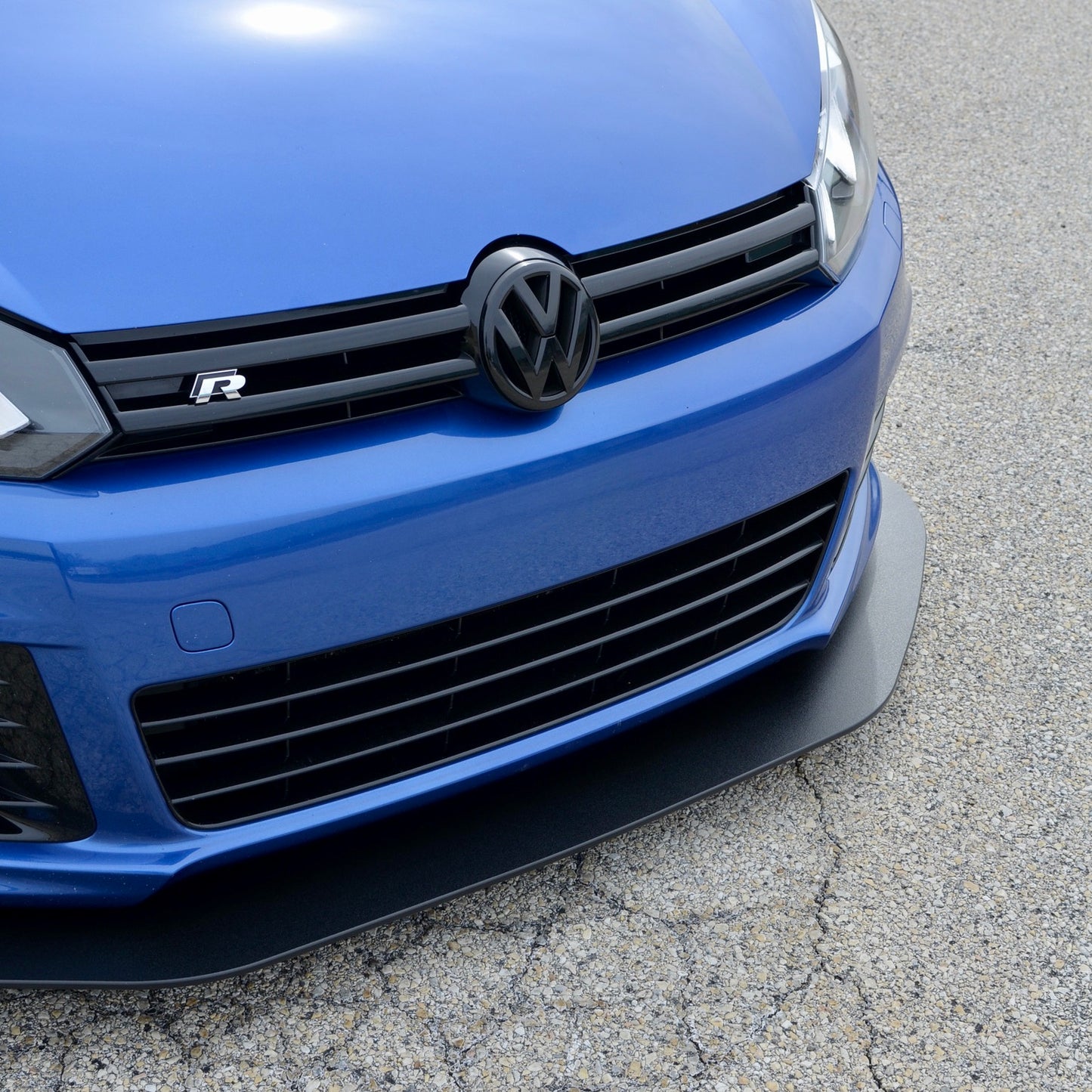

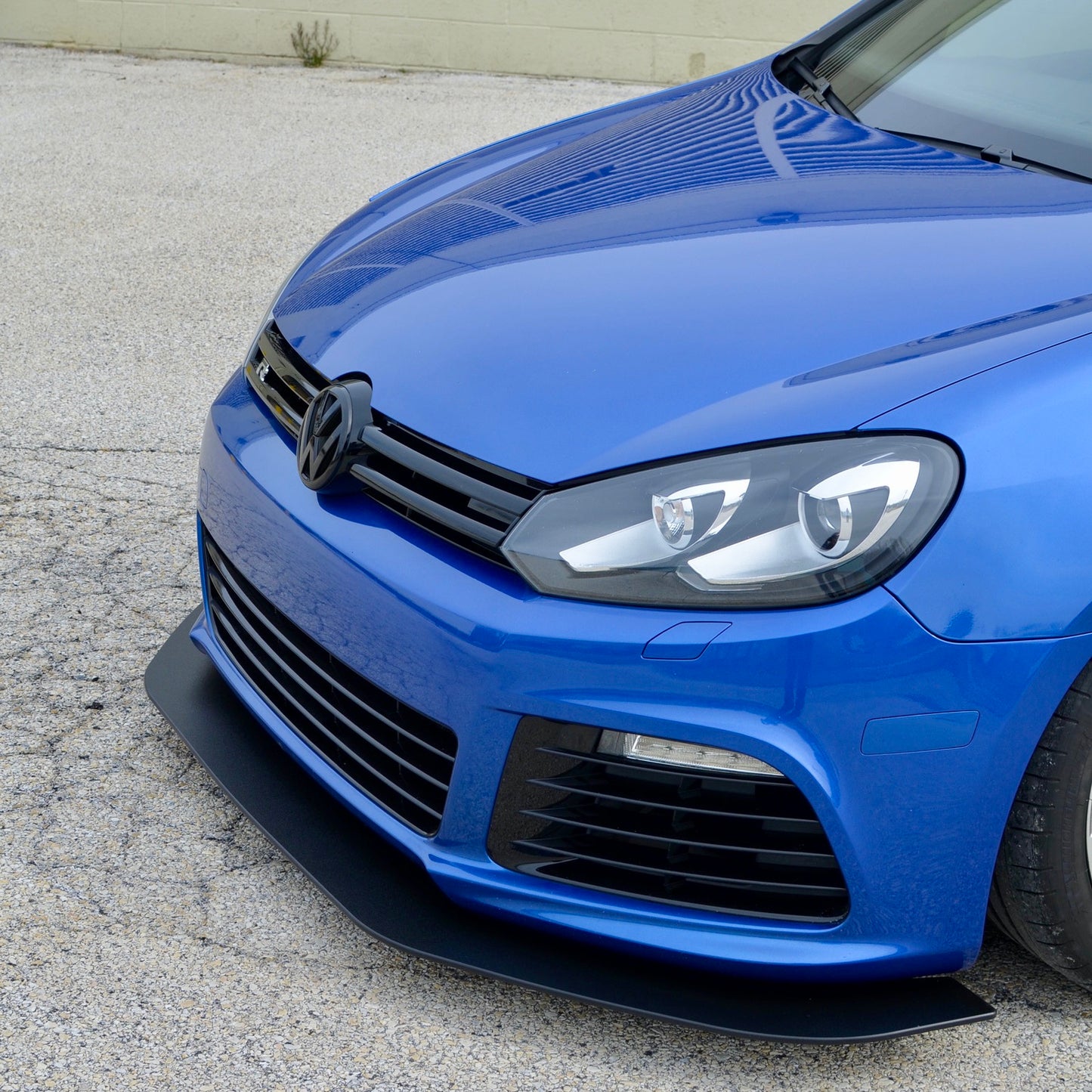

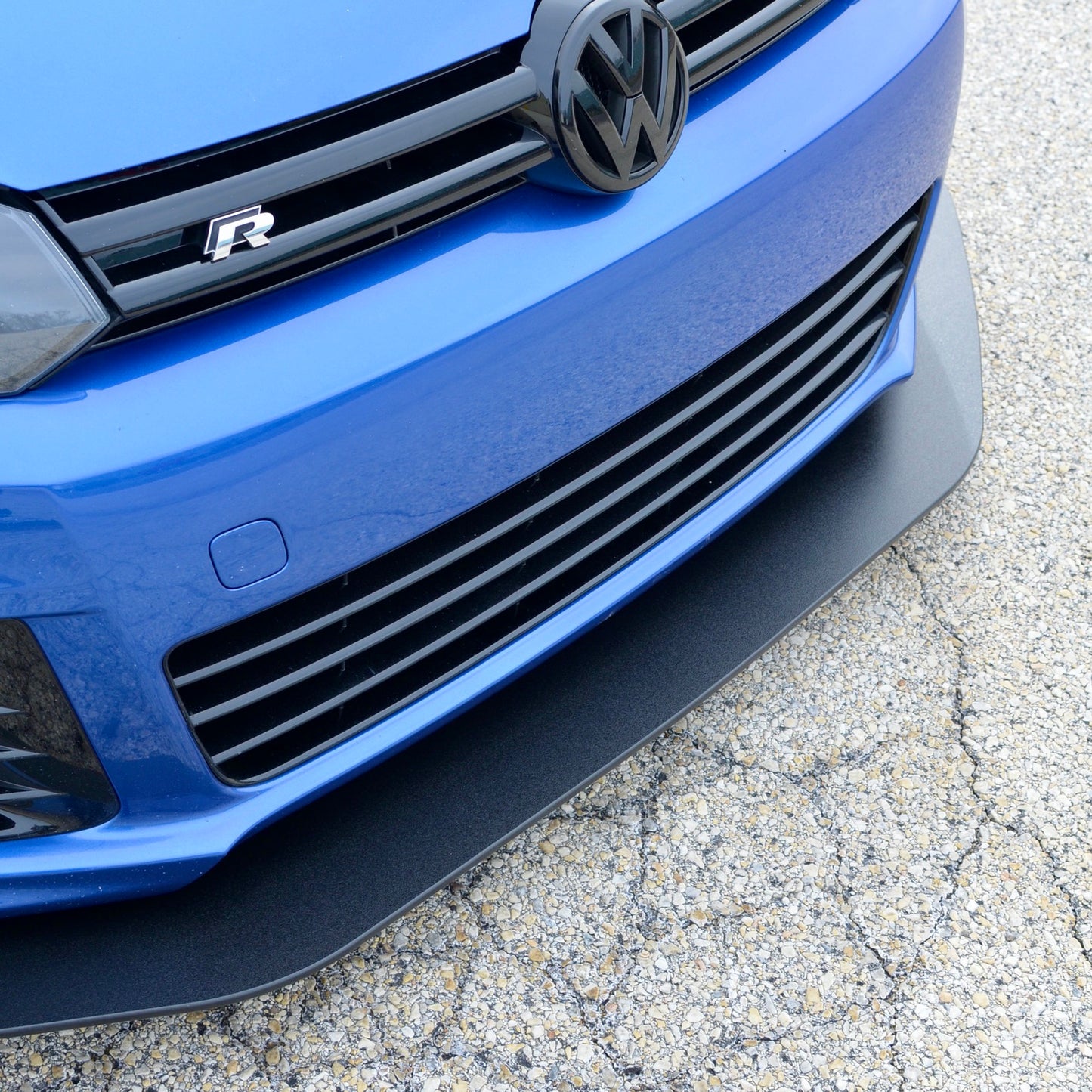

Our V4 blade is a durable street style lip that is fully chassis mounted. This can help protect your bumper. It has a 60mm stick-out.
Product details and install notes:
- Brackets & rods come in raw aluminum unless powder coating option is selected. Expect some visible imperfections in the material from the cutting and bending process on raw aluminum parts.
- This will not fit with any front mount/twin intercooler.
- If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
- Requires drilling four 11mm holes in the crash bar for install.
- Trimming the factory splash guard under the bumper is required (not the bumper).
- Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice. They are height adjustable in 12mm increments.
Weights -
Full assembly - 28 lbs
Ships in a 24"x72"x5" box - 40lbs packed
Whats Included?
Whats Included?
Each Order includes:

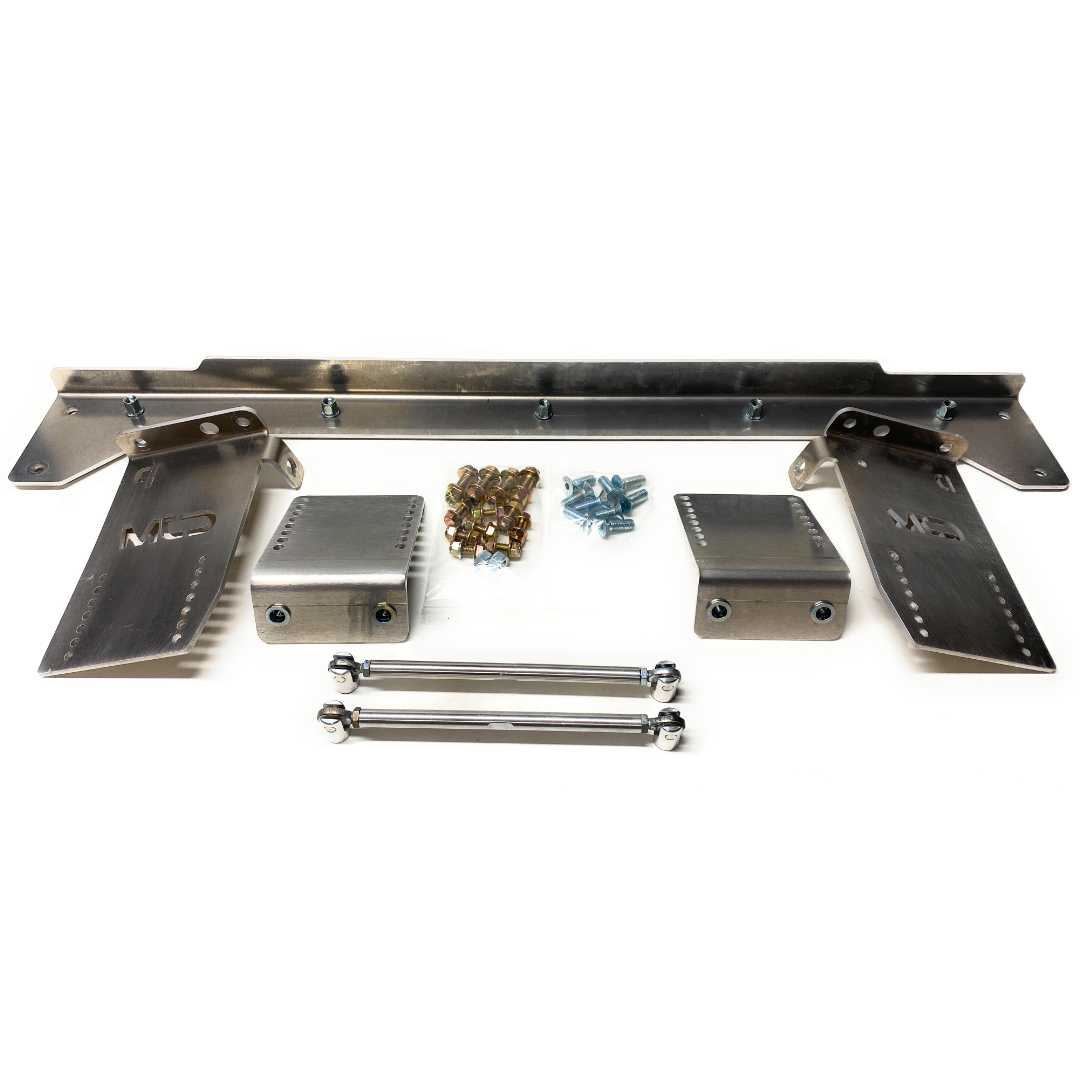

- Upper driver & passenger side bracket.
- Bottom brackets with pre-installed hex shank rivnuts for the lip/blade.
- Center support brace with pre-installed hex shank rivnuts for the lip/blade.
- Bolts and nuts for adjustable height settings.
- Bolts and nuts to mount to the Chassis.
- Countersunk hardware to attach a blade to brackets (3/8" or thinner)
- 3/8" thick high density plastic splitter blade.
- V2 & V3 kits come with an air dam. V4 kits do not.
- Printed install sheet (or check out the mk7 install video).
Install Info
Install Info
Install sheets can be found on CJMinstall.com. We are in the process of digitizing all sheets. If you can't find the copy you need, please email us! support@cjmind.com
Order FAQ
Order FAQ
- When will my order ship?
- Orders placed before 12pm EST typically ship the next business day if the product is in stock. Orders placed after 12pm EST will ship 48 hours later.
- Orders placed after 10am EST on Friday will ship on Monday.
- DHL Orders placed after 10am EST on Friday will ship on Monday.
- Tracking will be emailed as soon as we create the label.
- Do your products come with a warranty?
- Yes! We offer a manufacturer warranty on all of our products, the time period ranges by product line, so feel free to contact us for replacement parts. Please be sure to include which pieces you need.
- Do you ship international? What are the fees?
- We do ship direct to some countries outside the US.
- All international shipments are sent DDU and with signature required. You will be responsible for all duties and customs fees and arranging for delivery.
- The customer is responsible for all import duties and customs fees. They are not built into the product cost.
- What is your return & order cancellation policy?
- Please check it out here: Returns & cancelled orders
Still have a question that's not covered here?
CHASSIS MOUNTED SPLITTER OPTIONS
Whats the difference between versions?
- V1 - Brackets only - DIY kit to make your own blade and air dam.
- V2 - Blade with integrated air dam - Shaped for street use or autocross use.
- V3 - CFD tested for optimum performance on a track car. Additions include:
- V4 - Street Blade without an air dam. More durable than any bumper mounted option on the market!
Just need replacement or service parts for your kit? This product has been designed so that each component can be replaced. Bend a bracket, or strip a rod end? No problem, just swap on a replacement (available here).
OFF ROAD USE DISCLAIMER
Off road use only, not intended to be used on public roads. This product is not DOT approved. This product may alter the handling of the vehicle. The buyer is responsible for all modifications made to your car. CJM Industries llc assumes no responsibility or liability as a result from altering your car with our products. This product may not comply with Federal, State, Province, and/or Local laws, ordinances, and regulations. Buyer takes all responsibility to conform to all applicable laws and regulations for road use, especially pertaining to safety.
