Chassis Mounted Splitter Bracket set for VW MK7 & 7.5 GTI / R (V1)

Chassis Mounted Splitter Bracket set for VW MK7 & 7.5 GTI / R (V1)

Regular price $618.00 USD
Regular price Sale price $618.00 USD
Sale Sold out
Shipping calculated at checkout.
SKU: 2020052-7CB-SR-NB

This product cannot be returned.

This product ships in 3-5 business days. Made in USA - 2 year warranty on mfg defects. Wear and tear is not covered.

Our brackets provide an easy way for you to build your own splitter blade out of plywood or other sheet materials at home.

Product details and install notes:

  • Brackets & rods come in raw aluminum unless powder coating option is selected. Expect some visible imperfections in the material from the cutting and bending process on raw aluminum parts.
  • This will not fit with any front mount/twin intercooler.
  • If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
  • Requires drilling two 11mm holes in the crash bar for install.

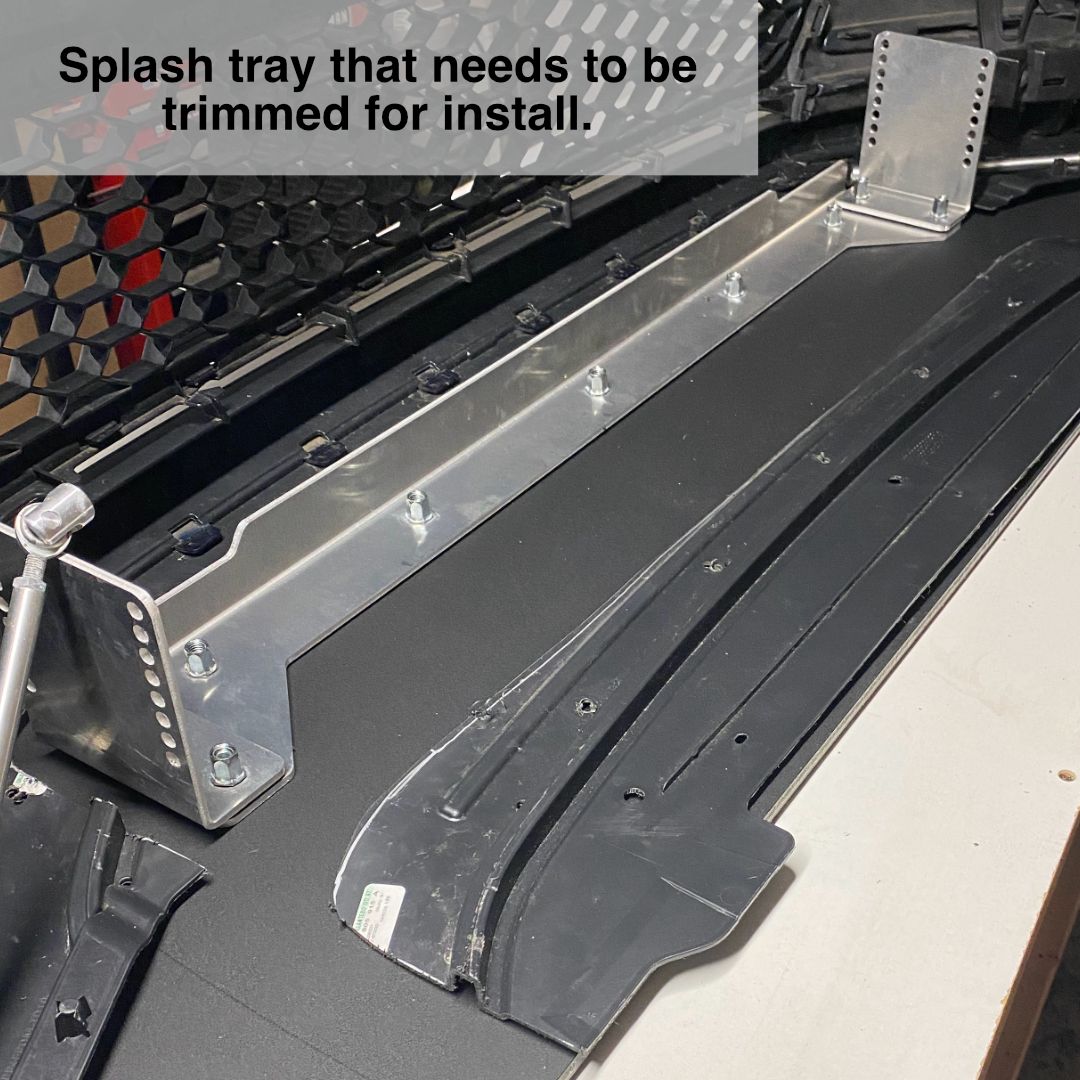

  • Trimming the factory splash guard under the bumper is required (not the bumper).
  • Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice. They are height adjustable in 12mm increments.

Our brackets are designed to support up to 100mm of stick-out past the OEM bumper. Exceeding this size can result in damage to the brackets, impact bar or frame horn.


Weights:

Full assembly - 18 lbs

Ships in a 40"x8"x8" box



We also offer all of the parts in this kit individually here

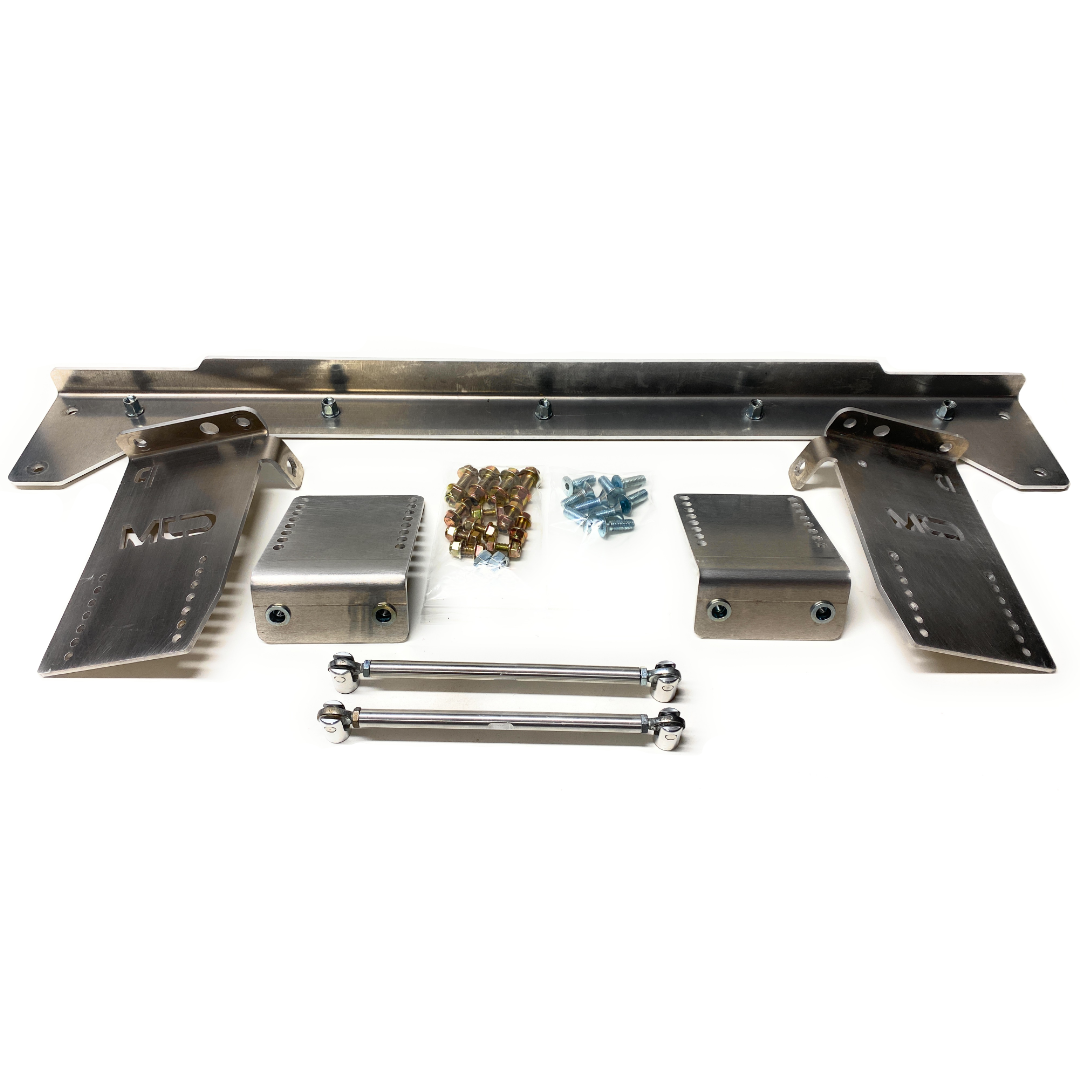

Whats Included?

Each Order includes:

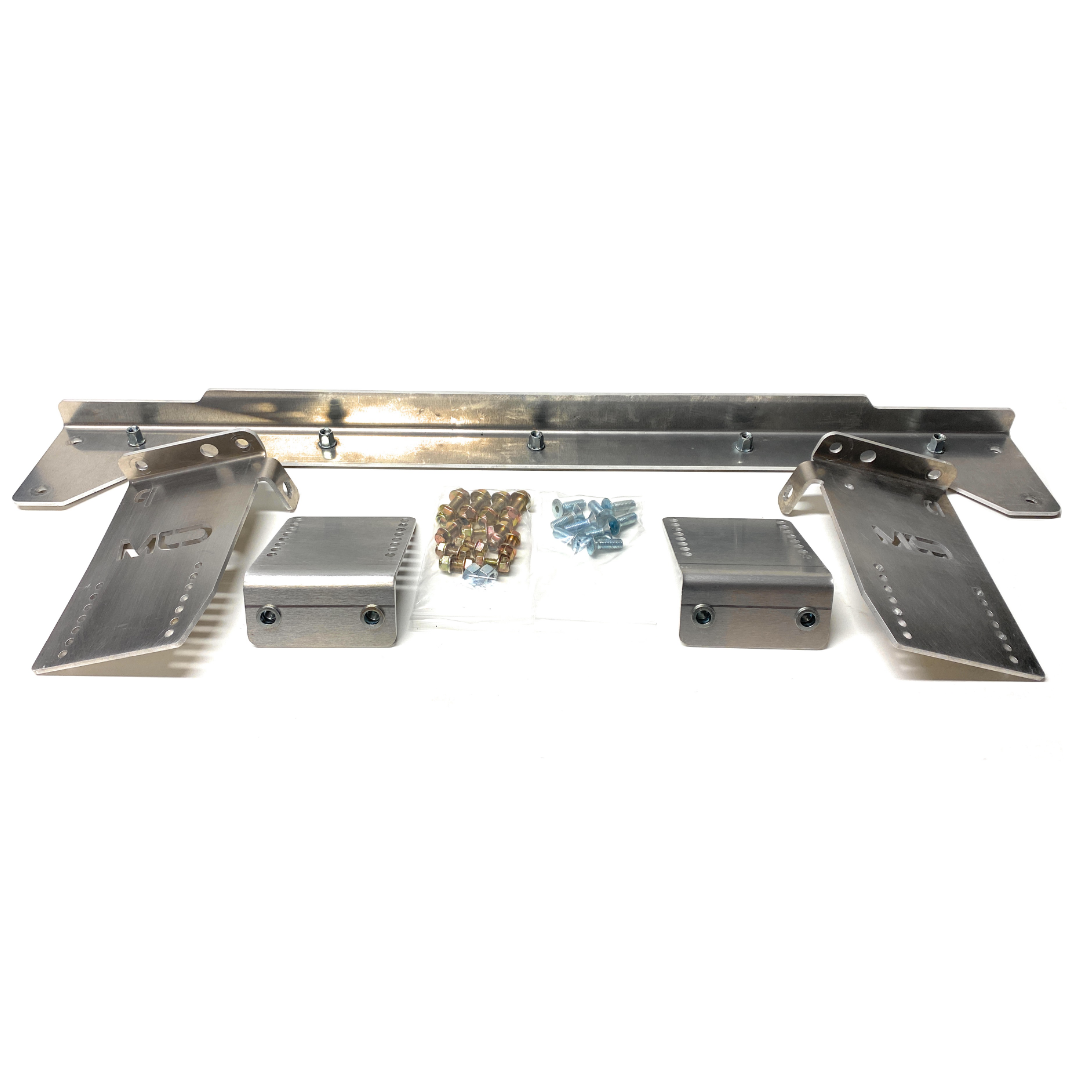

  • Upper driver & passenger side bracket.
  • Bottom brackets with pre-installed hex shank rivnuts for the lip/blade.
  • Center support brace with pre-installed hex shank rivnuts for the lip/blade.
  • Bolts and nuts for adjustable height settings.
  • Bolts and nuts to mount to the Chassis.
  • Countersunk hardware to attach a blade to brackets (3/8" or thinner)
  • Printed install sheet (or check out the mk7 install video).

    Install Info

    Install sheets can be found on CJMinstall.com. We are in the process of digitizing all sheets. If you can't find the copy you need, please email us! support@cjmind.com

      Order FAQ

      • When will my order ship?
        • Orders placed before 12pm EST typically ship the next business day if the product is in stock. Orders placed after 12pm EST will ship 48 hours later.
        • Orders placed after 10am EST on Friday will ship on Monday.
        • DHL Orders placed after 10am EST on Friday will ship on Monday.
        • Tracking will be emailed as soon as we create the label.
        • Do your products come with a warranty?
          • Yes! We offer a manufacturer warranty on all of our products, the time period ranges by product line, so feel free to contact us for replacement parts. Please be sure to include which pieces you need.
        • Do you ship international? What are the fees?
          • We do ship direct to some countries outside the US.
          • All international shipments are sent DDU and with signature required. You will be responsible for all duties and customs fees and arranging for delivery.
          • The customer is responsible for all import duties and customs fees. They are not built into the product cost.

            Still have a question that's not covered here?

            Contact Us

            View full details

            CHASSIS MOUNTED SPLITTER OPTIONS

            Whats the difference between versions?

            - Tire spats
            - Strakes
            - Additional bracing
            - Large endplates
            - Front cable supports
            - Modular design for easy part replacement
            • V4 - Street Blade without an air dam. More durable than any bumper mounted option on the market!

            Just need replacement or service parts for your kit? This product has been designed so that each component can be replaced. Bend a bracket, or strip a rod end? No problem, just swap on a replacement (available here).



            OFF ROAD USE DISCLAIMER

            Off road use only, not intended to be used on public roads. This product is not DOT approved. This product may alter the handling of the vehicle. The buyer is responsible for all modifications made to your car. CJM Industries llc assumes no responsibility or liability as a result from altering your car with our products. This product may not comply with Federal, State, Province, and/or Local laws, ordinances, and regulations. Buyer takes all responsibility to conform to all applicable laws and regulations for road use, especially pertaining to safety.
